KC-10001

Electro Acoustic Specification

Nominal Chassis Diameter     10"

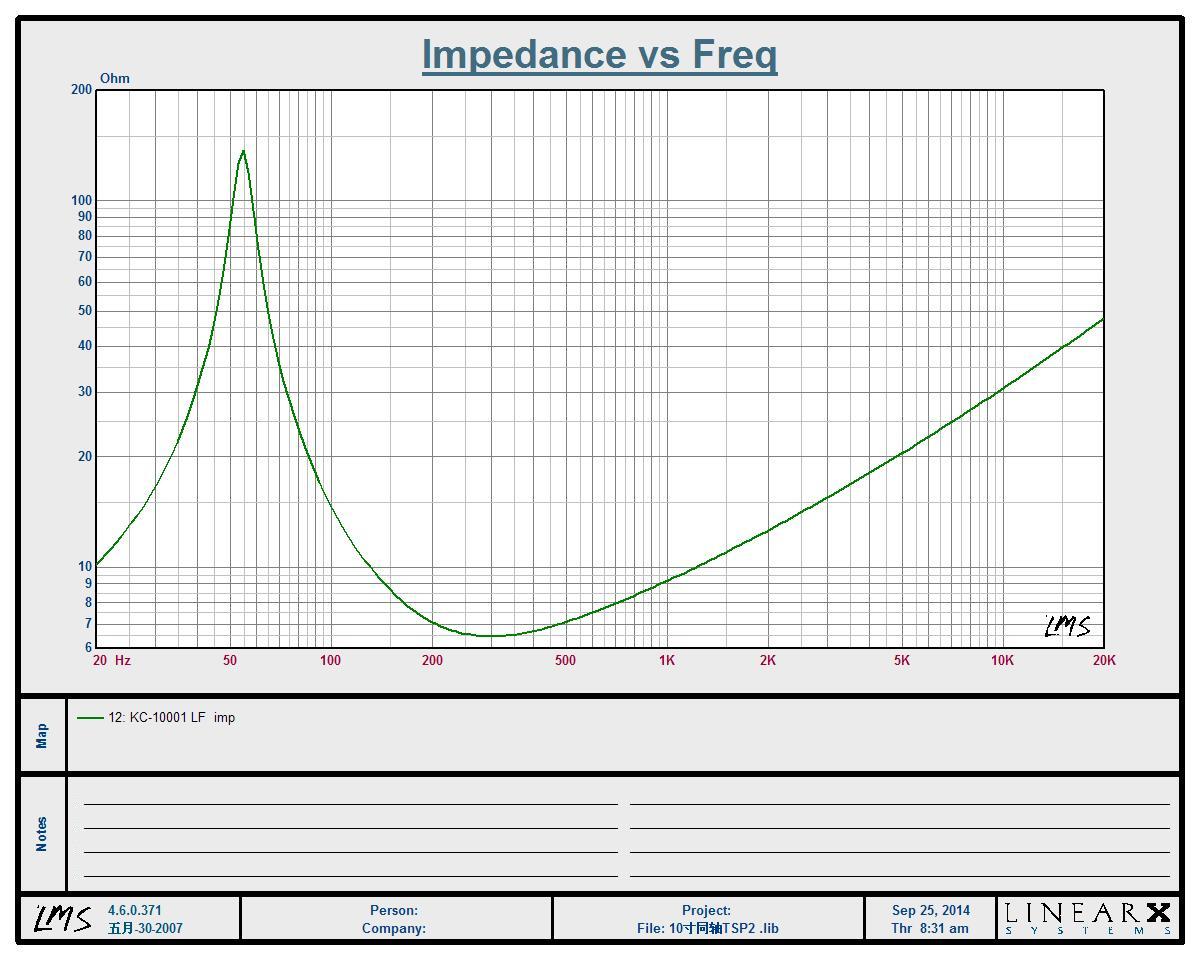

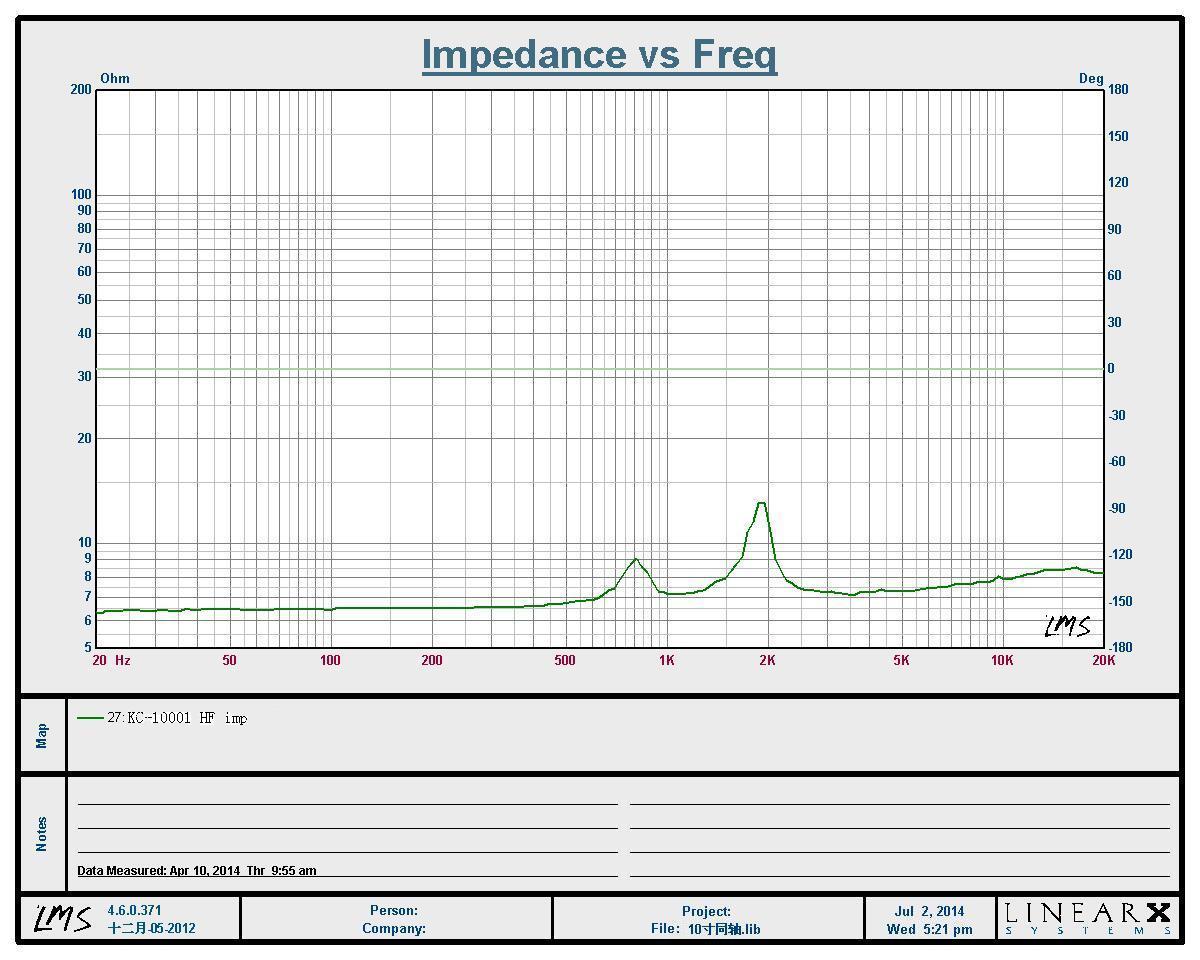

Nominal Impedance               8Ω
Power Handing                      250W A.E.S.
Peak Power                          1000W A.E.S.

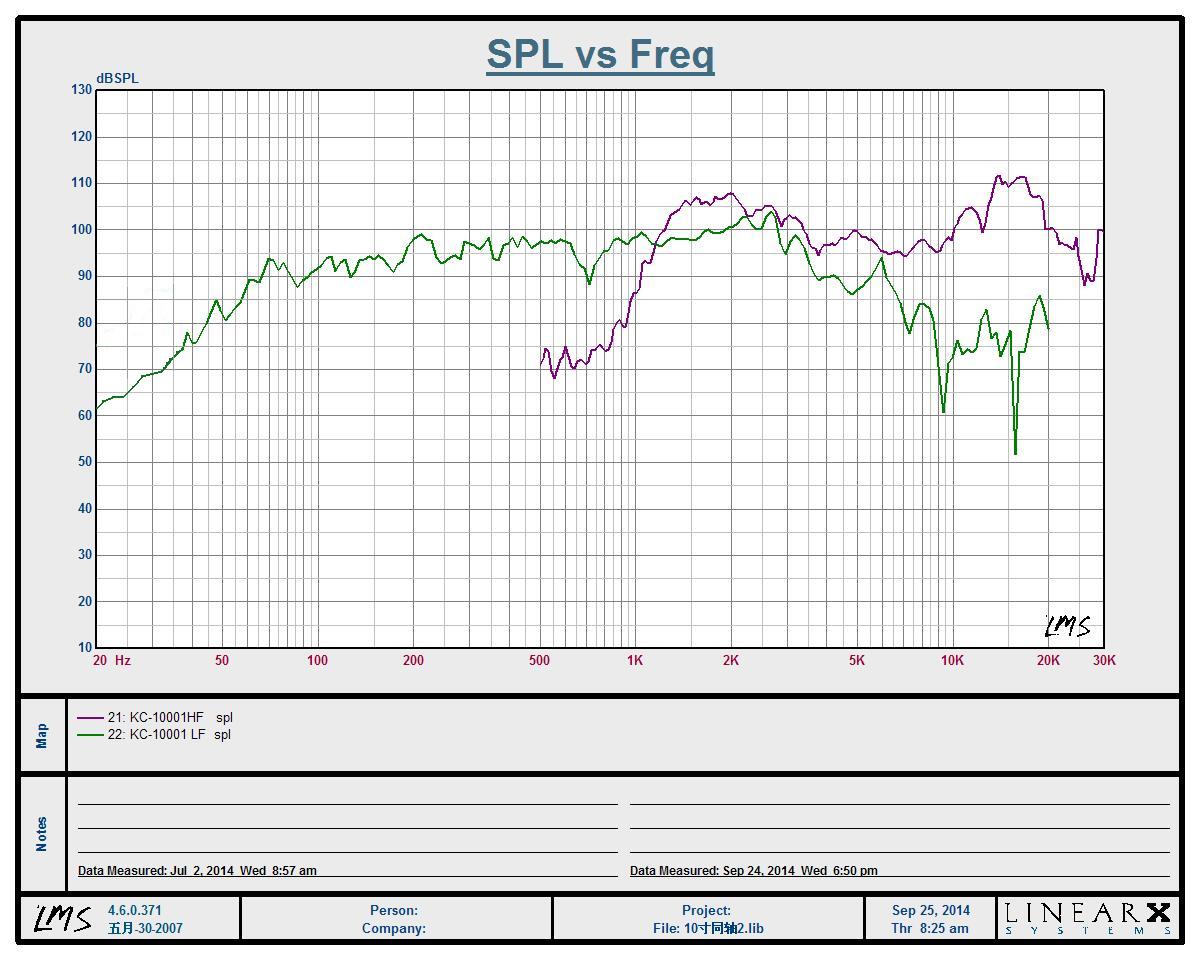

Sensitivity(1w/1m)                 98dB
Usable Frequency Range       55Hz - 20KHz
Voice Coil Diameter               LF:2.5"/63.5mm; HF:1.75"/44mm
Voice Coil DC Resistance      LF=5.2 Ω; HF=6.2 Ω
Flux Density                         LF:1.2 Tesla; HF:1.6 Tesla


Material of Construction

Coil Former                          Glass Fiber
Voice Coil Material                CCAW
Chassis                               Die Cast
Magnet Material                    Ferrite


Mounting /Shipping Information

Overall Diameter                     10.24"/260mm
Depth                                    165 mm
Weight                                   5.8 kg
Shipping Weight                      6.2 kg
Packing Carton Dimensions     28*28*20cm
Bolt Fixing Hole Dim and Qty   8*∮5.5mm on 246 mm PCD
