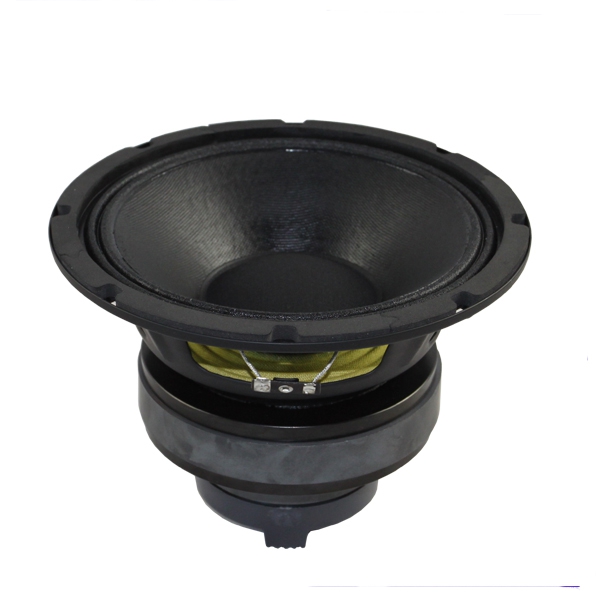

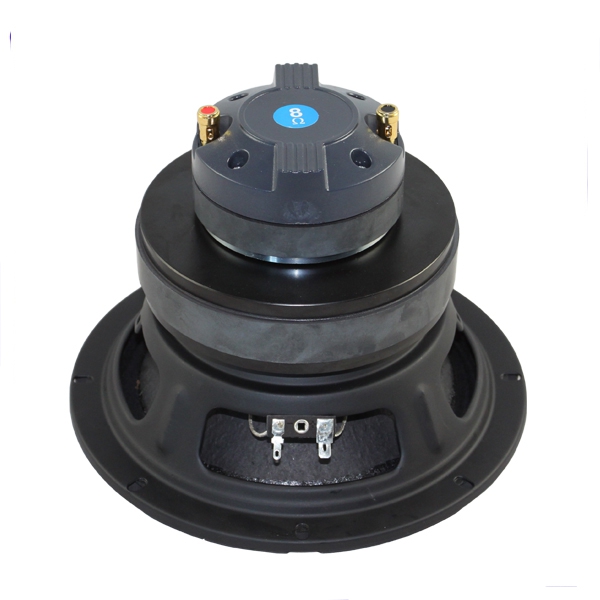

KC-8002

Electro Acoustic Specification

Nominal Chassis Diameter     8"
Nominal Impedance               8Ω
Power Handing                      200W A.E.S.
Peak Power                          800W A.E.S.

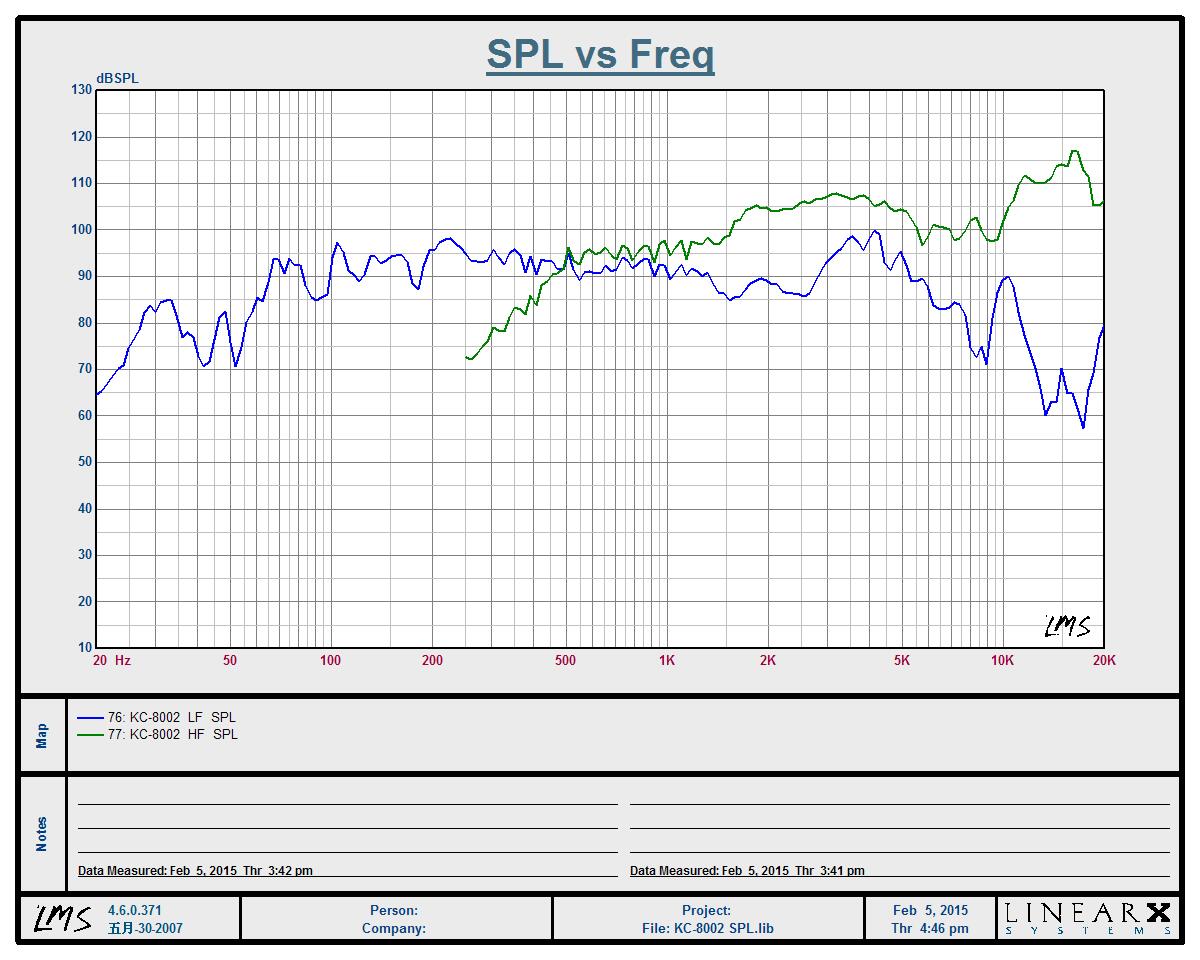

Sensitivity(1w/1m)                 94dB
Usable Frequency Range       70Hz - 20KHz
Voice Coil Diameter               LF:2.5"/63.5mm; HF:1.34/34mm
Voice Coil DC Resistance      LF=5.2 Ω; HF=6.2 Ω
Flux Density                         LF:1.1 Tesla; HF:1.6 Tesla


Material of Construction

Coil Former                          Glass Fiber
Voice Coil Material                CCAW
Chassis                               Steel
Magnet Material                    Ferrite


Mounting /Shipping Information

Overall Diameter                     8.27"/210mm
Depth                                    149 mm
Weight                                   4.6 kg
Shipping Weight                      5.0 kg
Packing Carton Dimensions     24*24*17cm
Bolt Fixing Hole Dim and Qty   4*∮5.5mm on 197 mm PCD
