KT-6004

Electro Acoustic Specification

Sound Channel / Throat Size    1" /25.4mm

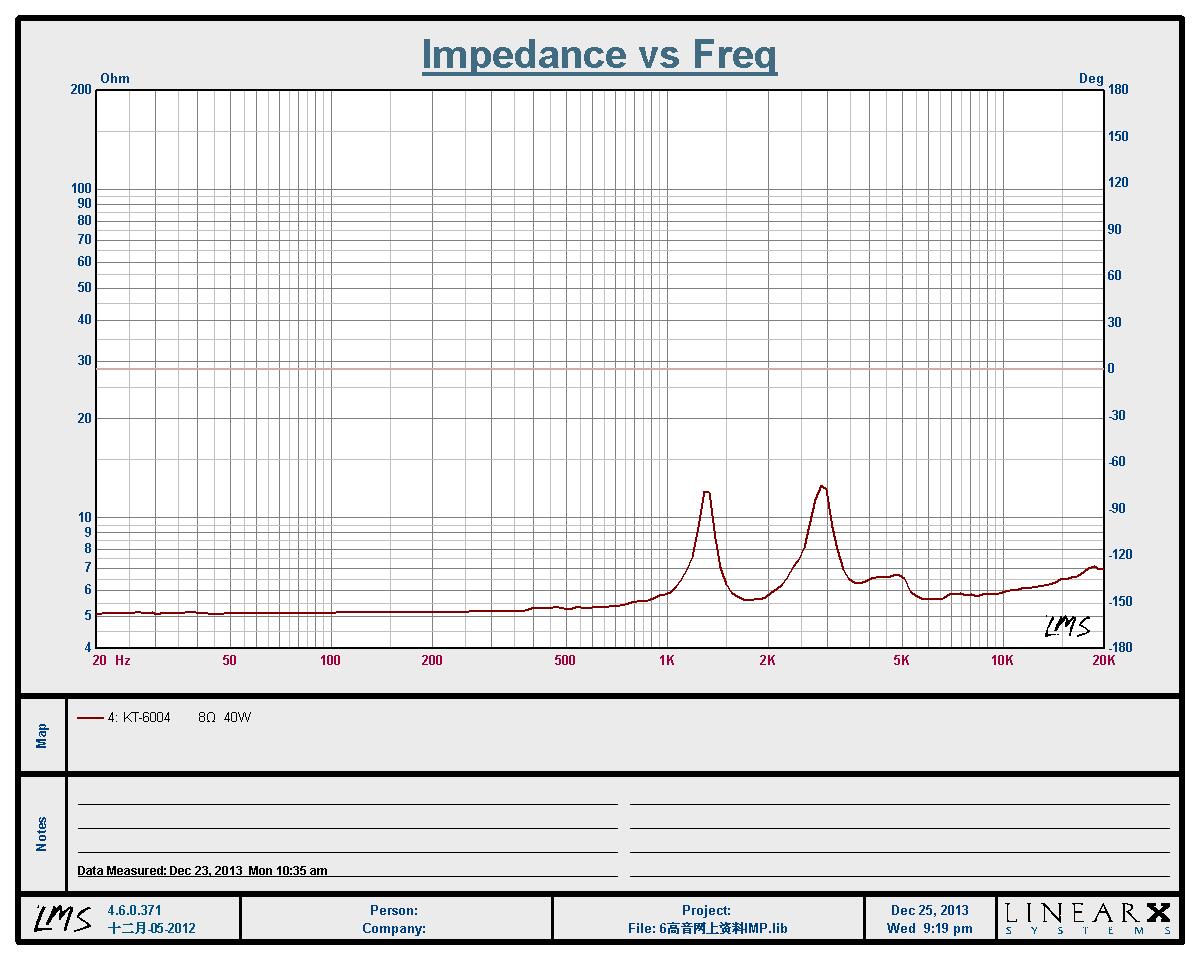

Nominal Impedance                8Ω
Power Handing                       40W A.E.S.

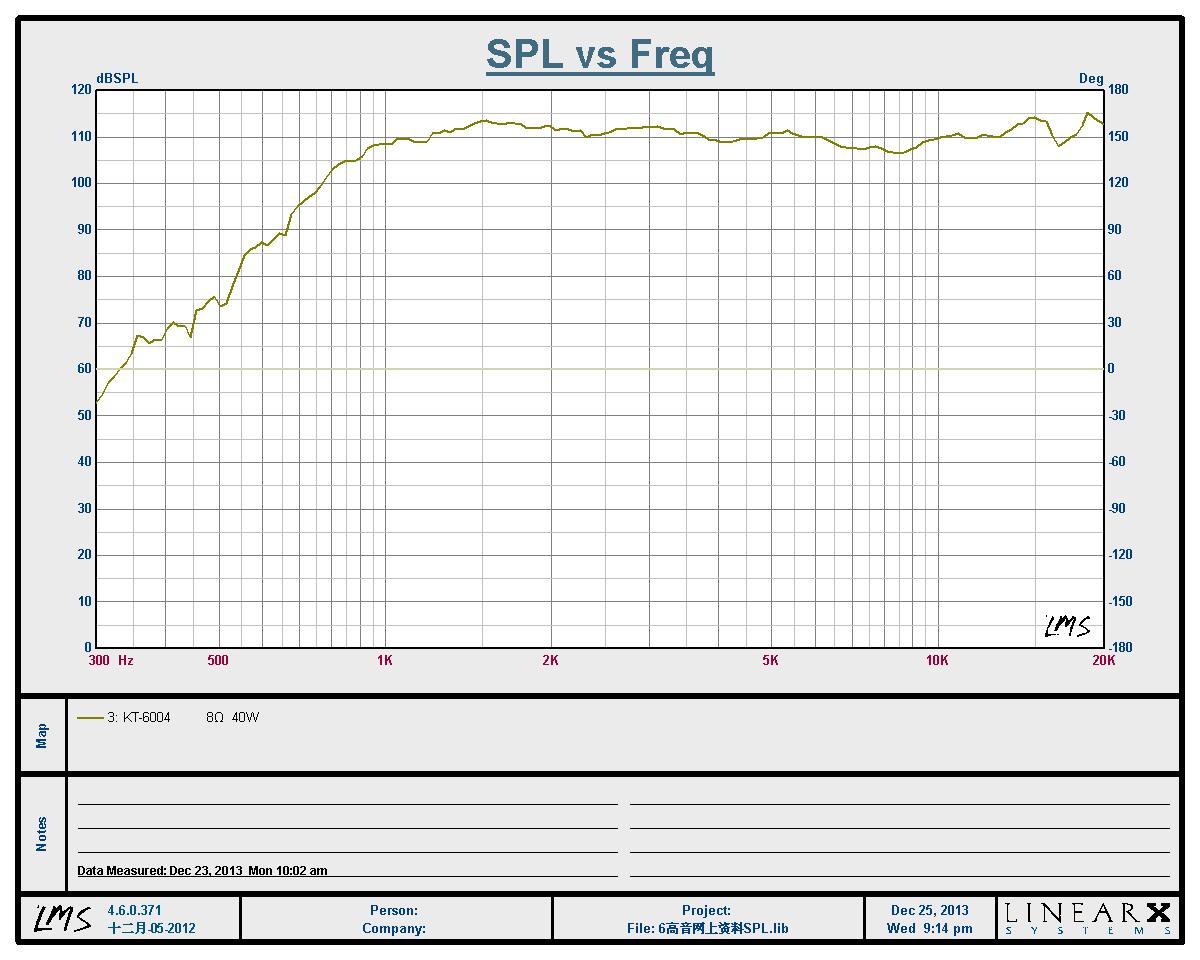

Sensitivity(1w/1m)                   114dB
Usable Frequency Range        1.2KHz - 20KHz
Recommended crossover        above 2kHz
Frequency Filtered at
18dB /Octave
Voice Coil Diameter                1.5"/38mm
Voice Coil DC Resistance        6.3 Ω
Flux Density                           1.8 Tesla


Material of Construction

Coil Former                              Kapton
Voice Coil Material                   Copper Clad Aluminium
Diaphragm material                  Polyester
Magnet Material                       Ferrite


Mounting /Shipping Information

Overall Diameter                     3.78" /96mm
Depth                                     1.57" /40mm
Weight                                    0.98 kg
Shipping Weight                      1kg
Packing Carton Dimensions    11*11*5.5cm
Bolt Fixing Hole Dim and Qty   Screw Fit  2xM5 holes on Φ76.2
