KT-6006

Electro Acoustic Specification

Sound Channel / Throat Size    1" /25.4mm
Nominal Impedance                8Ω
Power Handing                       50W A.E.S.

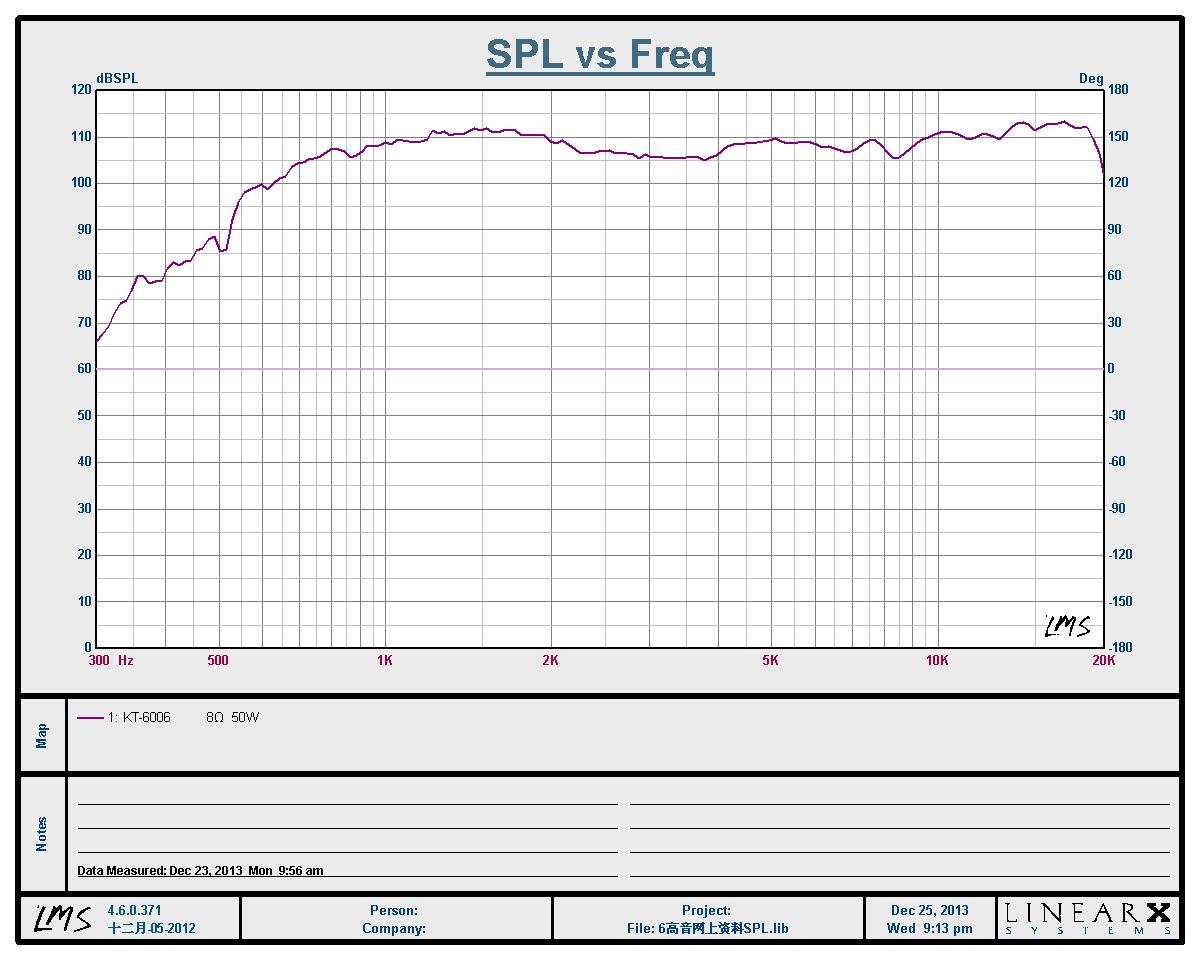

Sensitivity(1w/1m)                   108dB
Usable Frequency Range        2KHz - 18KHz
Recommended Crossover        above 2kHz
Frequency Filtered at
18dB /Octave
Voice Coil Diameter                1.75"/44mm
Voice Coil DC Resistance        6.3 Ω
Flux Density                           1.7Tesla


Material of Construction

Coil Former                              Kapton
Voice Coil Material                   Aluminium
Diaphragm material                  Polyester
Magnet Material                       Ferrite


Mounting /Shipping Information

Overall Diameter                      5.3" /134mm
Depth                                     2.4" /60mm
Weight                                   2.8 kg
Shipping Weight                      3.0kg
Packing Carton Dimensions    15*15*7.5cm
Bolt Fixing Hole Dim and Qty   Screw Fit  2xM6 holes on Φ76
