KT-6012

Electro Acoustic Specification

Sound Channel / Throat Size    1" /25.4mm

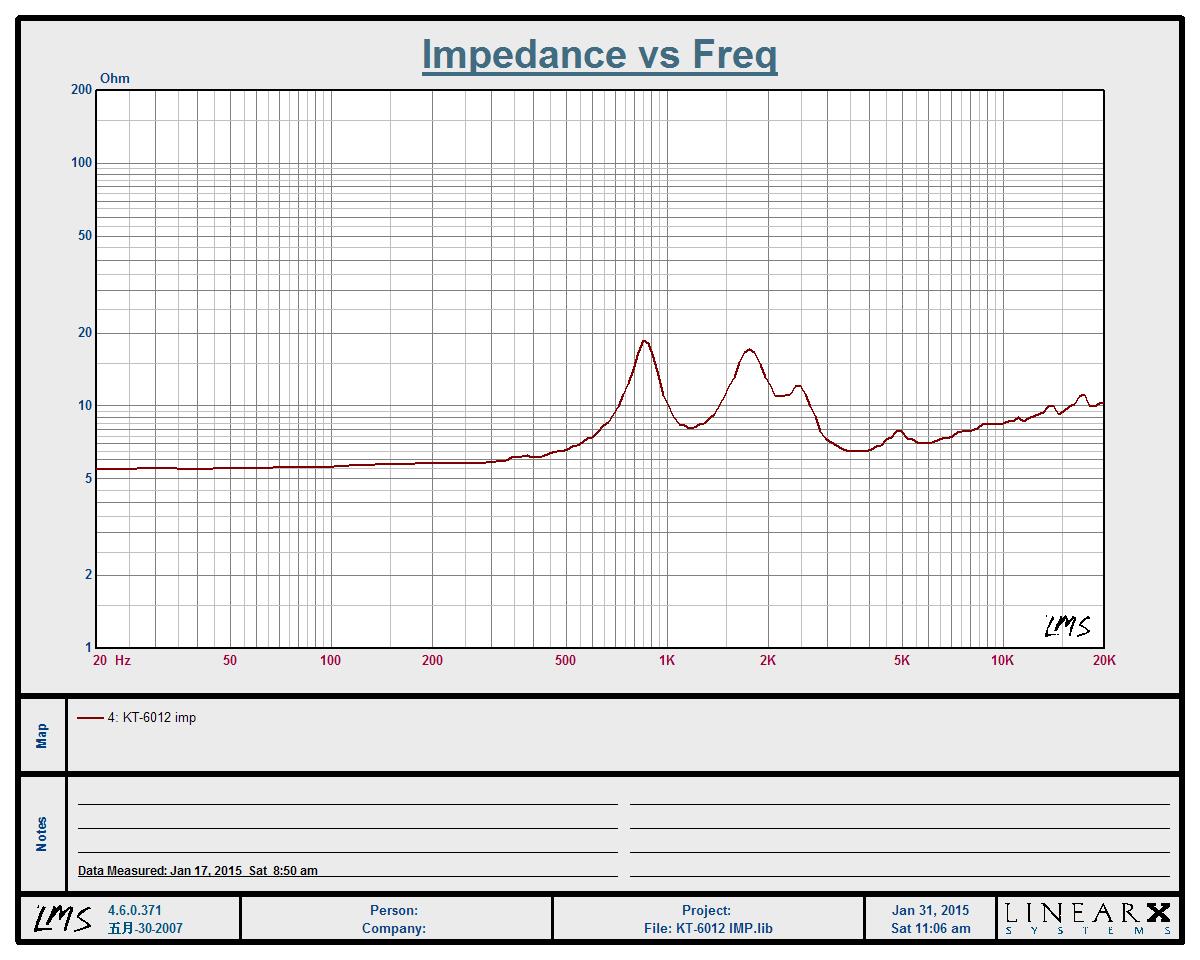

Nominal Impedance                8Ω
Power Handing                       60W A.E.S.

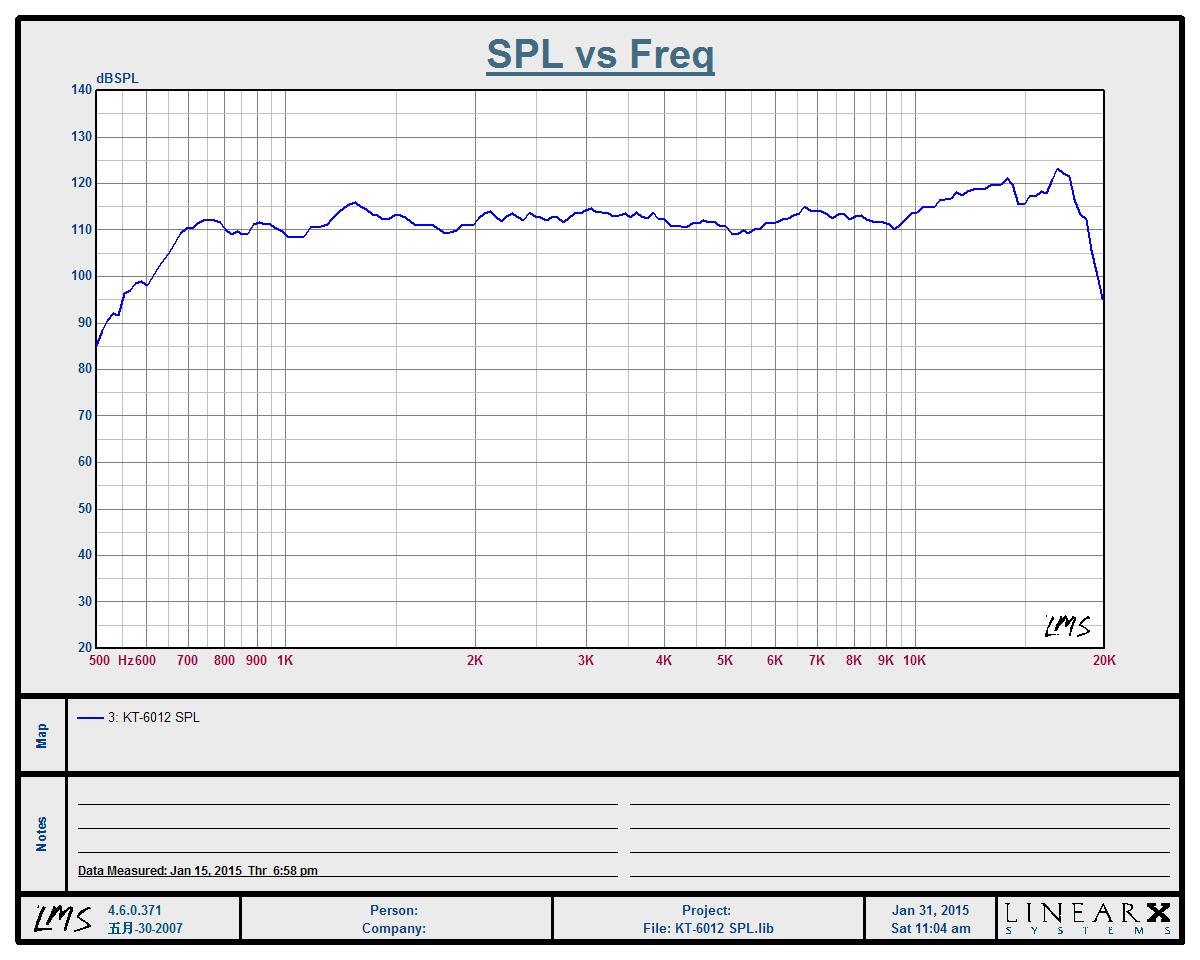

Sensitivity(1w/1m)                   108dB
Usable Frequency Range        1.2KHz - 18KHz
Recommended crossover        above 1.8kHz
Frequency Filtered at
18dB /Octave
Voice Coil Diameter                1.75"/44.4mm
Voice Coil DC Resistance        5.5 Ω
Flux Density                           1.8Tesla


Material of Construction

Coil Former                              Kapton
Voice Coil Material                   Aluminium
Diaphragm material                  Polyester
Magnet Material                       Ferrite


Mounting /Shipping Information

Overall Diameter                      4.8" /122mm
Depth                                     2.56" /65mm
Weight                                   2.3 kg
Shipping Weight                      2.5kg
Packing Carton Dimensions    13.5*13.5*8cm
Bolt Fixing Hole Dim and Qty   Screw Fit  4xM6 holes onΦ76.2
