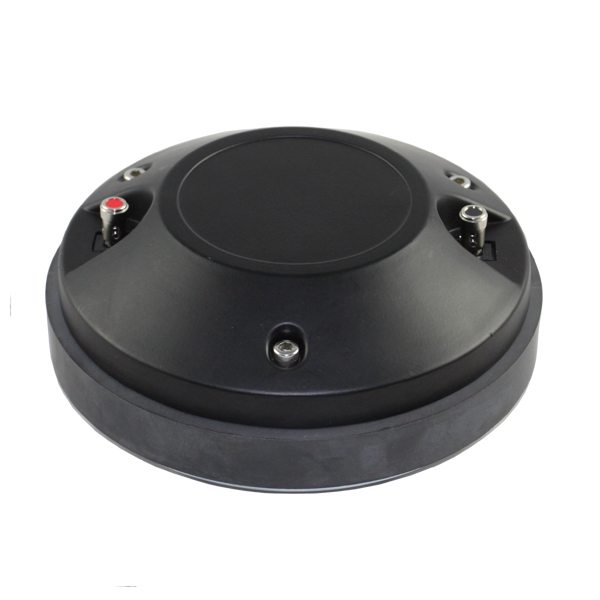

KT-6013

Electro Acoustic Specification

Sound Channel / Throat Size    1.4" /36mm

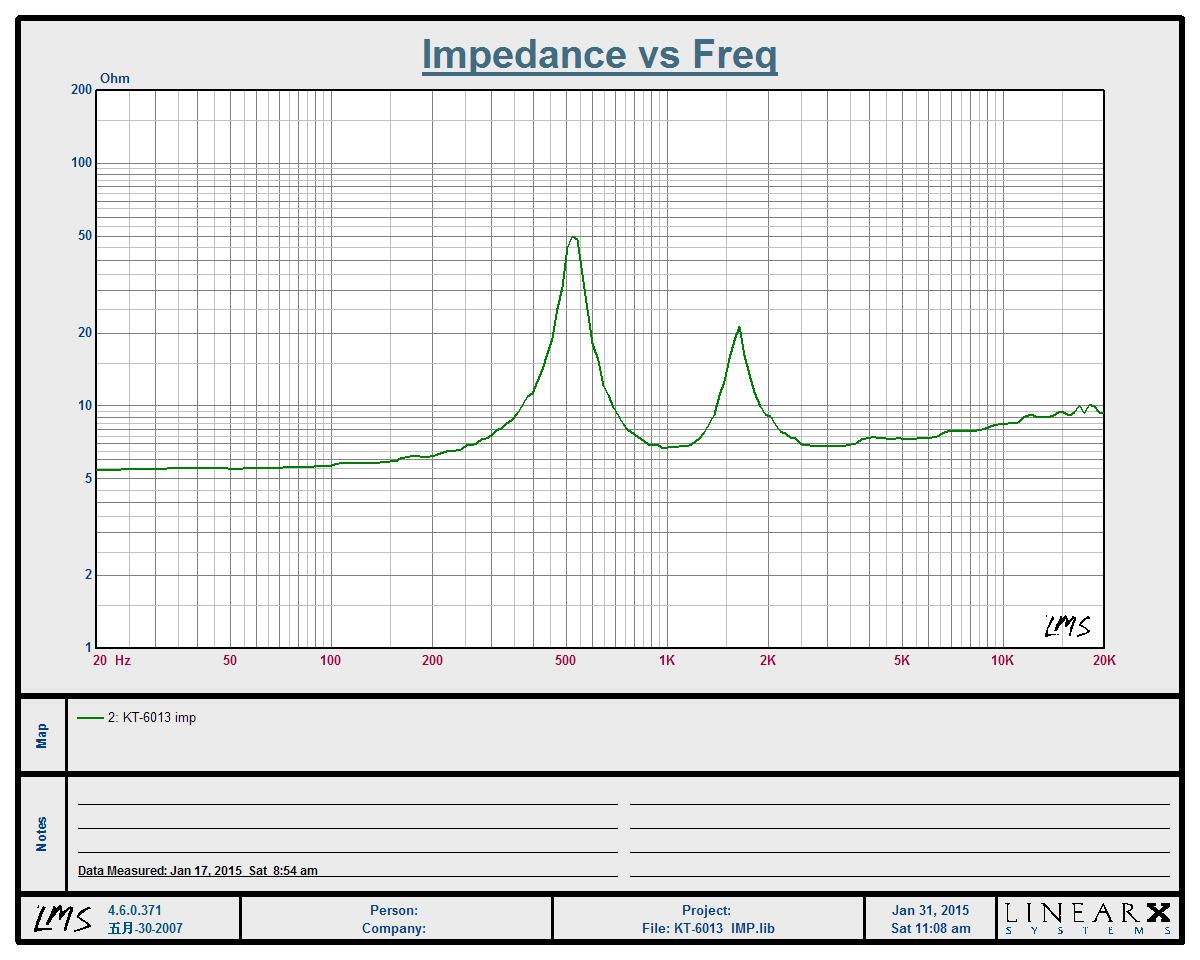

Nominal Impedance                8Ω
Power Handing                       100W A.E.S.

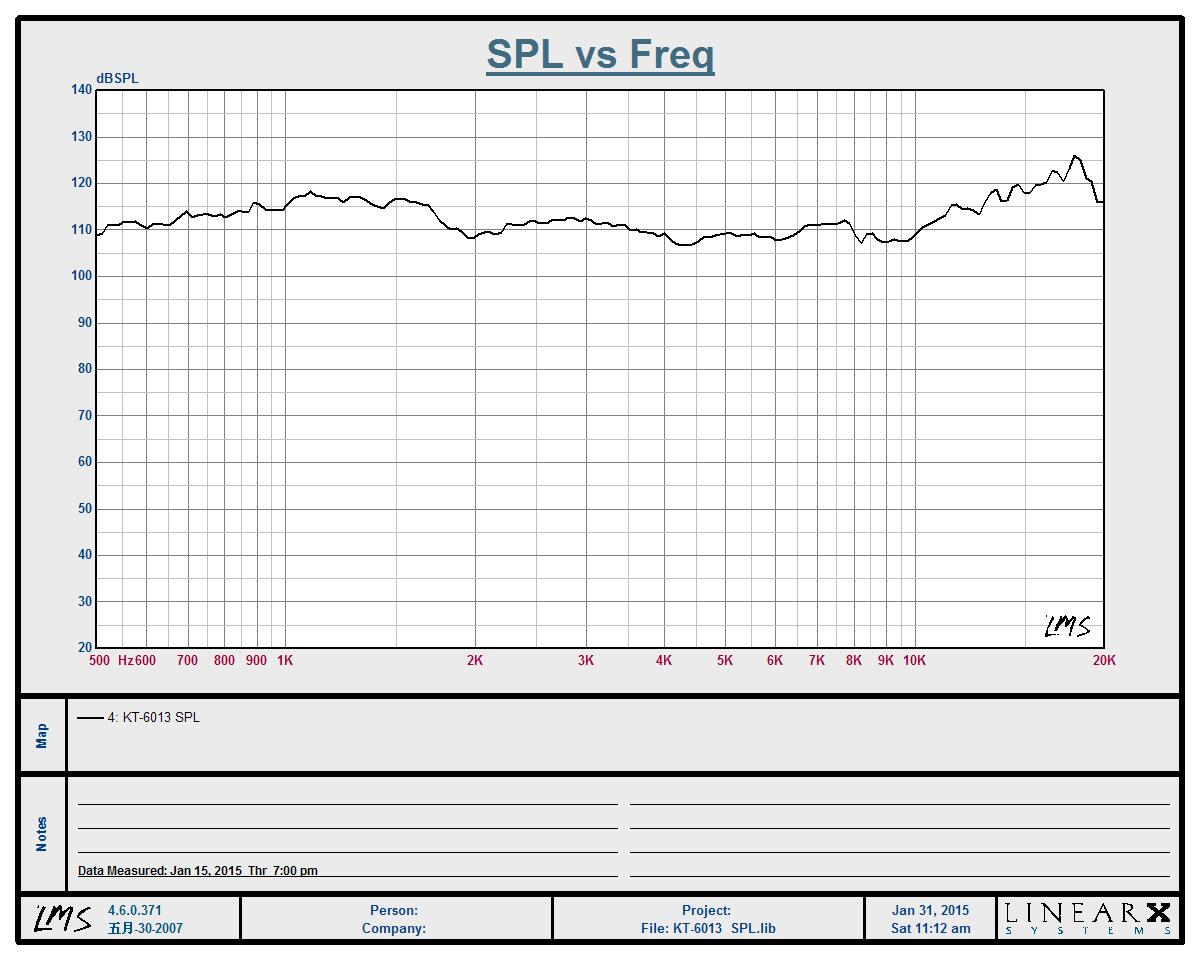

Sensitivity(1w/1m)                   110dB
Usable Frequency Range        1KHz - 18KHz
Recommended crossover        above 1.5kHz
Frequency Filtered at
18dB /Octave
Voice Coil Diameter                3"/75mm
DCR:                                     5.5Ω
Flux Density                           1.70Tesla


Material of Construction

Coil Former                              Kapton
Voice Coil Material                   Aluminium
Diaphragm material                  Polyester
Magnet Material                       Ferrite


Mounting /Shipping Information

Overall Diameter                      6.7" /170mm
Depth                                     2.56" /65mm
Weight                                   4.5kg
Shipping Weight                      4.7kg
Packing Carton Dimensions    18.5*18.5*8cm

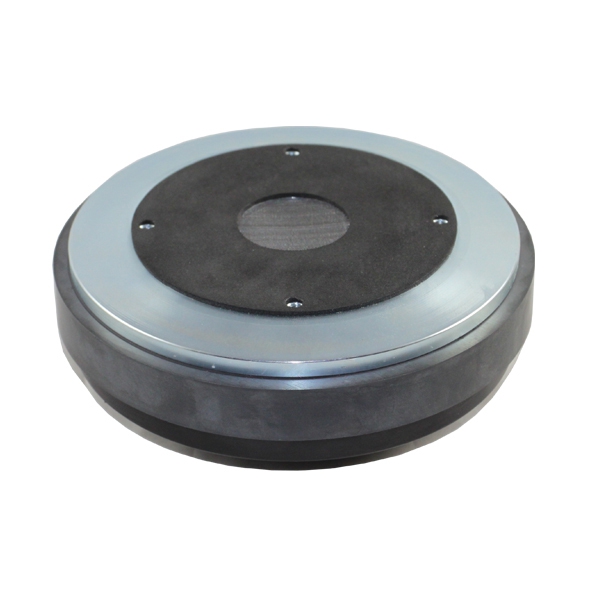

Bolt Fixing Hole Dim and Qty   Screw Fit  4xM6 holes on Φ101.6
