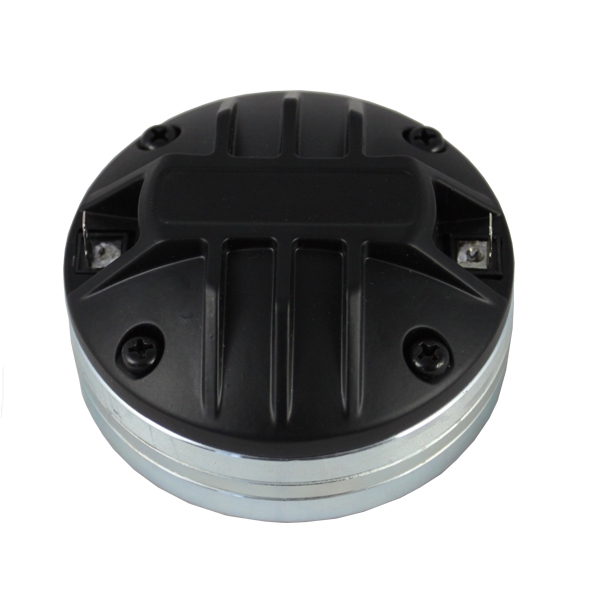

KT-6014

Electro Acoustic Specification

Sound Channel / Throat Size    1" /25.4mm
Nominal Impedance                8Ω
Power Handing                       40W A.E.S.
Sensitivity(1w/1m)                   108dB
Usable Frequency Range        1.3KHz - 18KHz
Recommended crossover        above 2kHz
Frequency Filtered at
18dB /Octave
Voice Coil Diameter                1.75"/44.4mm
Voice Coil DC Resistance        5.6 Ω
Flux Density                           1.8Tesla


Material of Construction

Coil Former                              Kapton
Voice Coil Material                   Aluminium
Diaphragm material                  Polyester
Magnet Material                       Neodymium


Mounting /Shipping Information

Overall Diameter                     3.35" /85mm
Depth                                    1.81" /46mm
Weight                                   0.8 kg
Shipping Weight                     1.0kg
Packing Carton Dimensions   　9.5*9.5*5.5cm
Bolt Fixing Hole Dim and Qty   Screw Fit  2xM5 holes onΦ76.2
