KT-6016

Electro Acoustic Specification

Sound Channel / Throat Size    1" /25.4mm

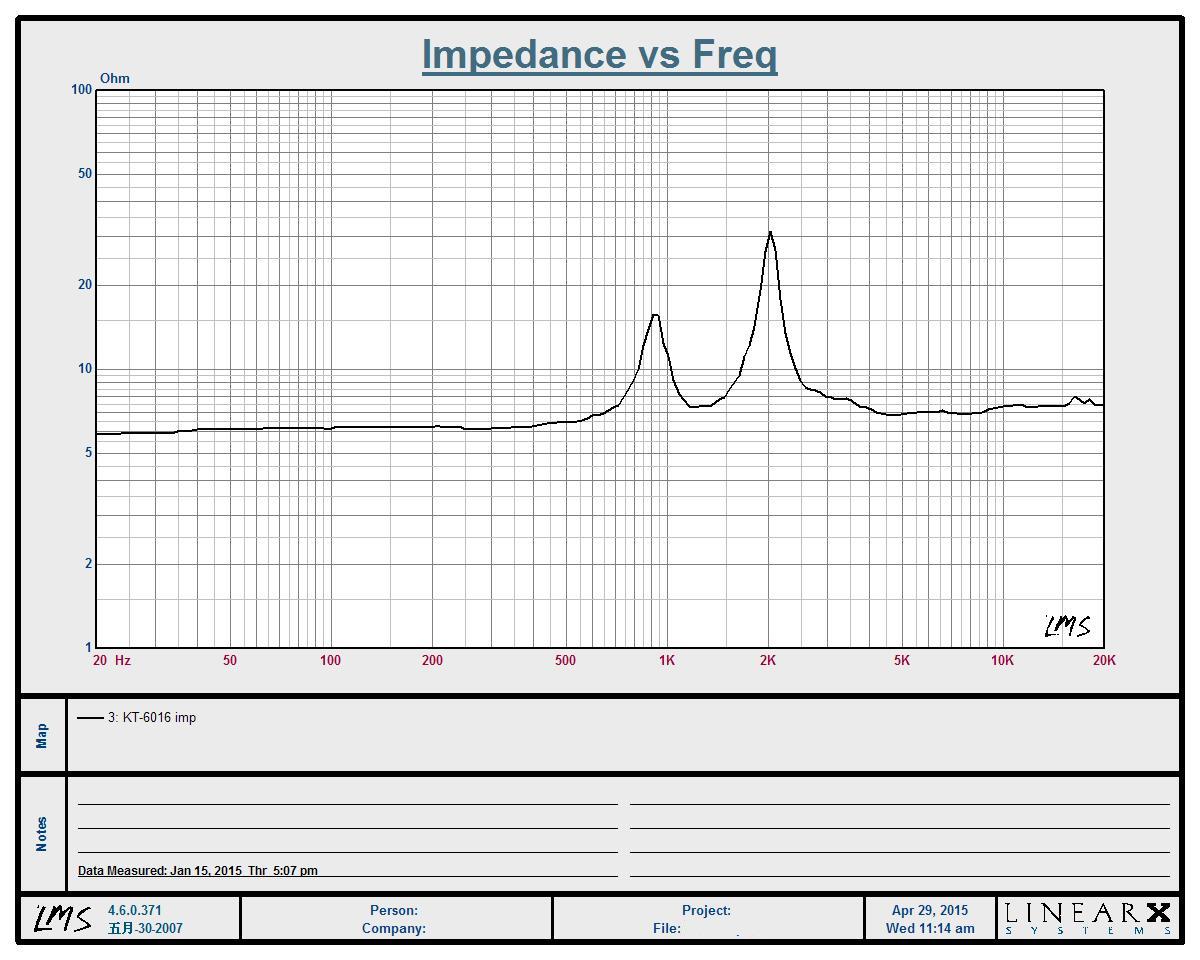

Nominal Impedance                8Ω
Power Handing                       40W A.E.S.

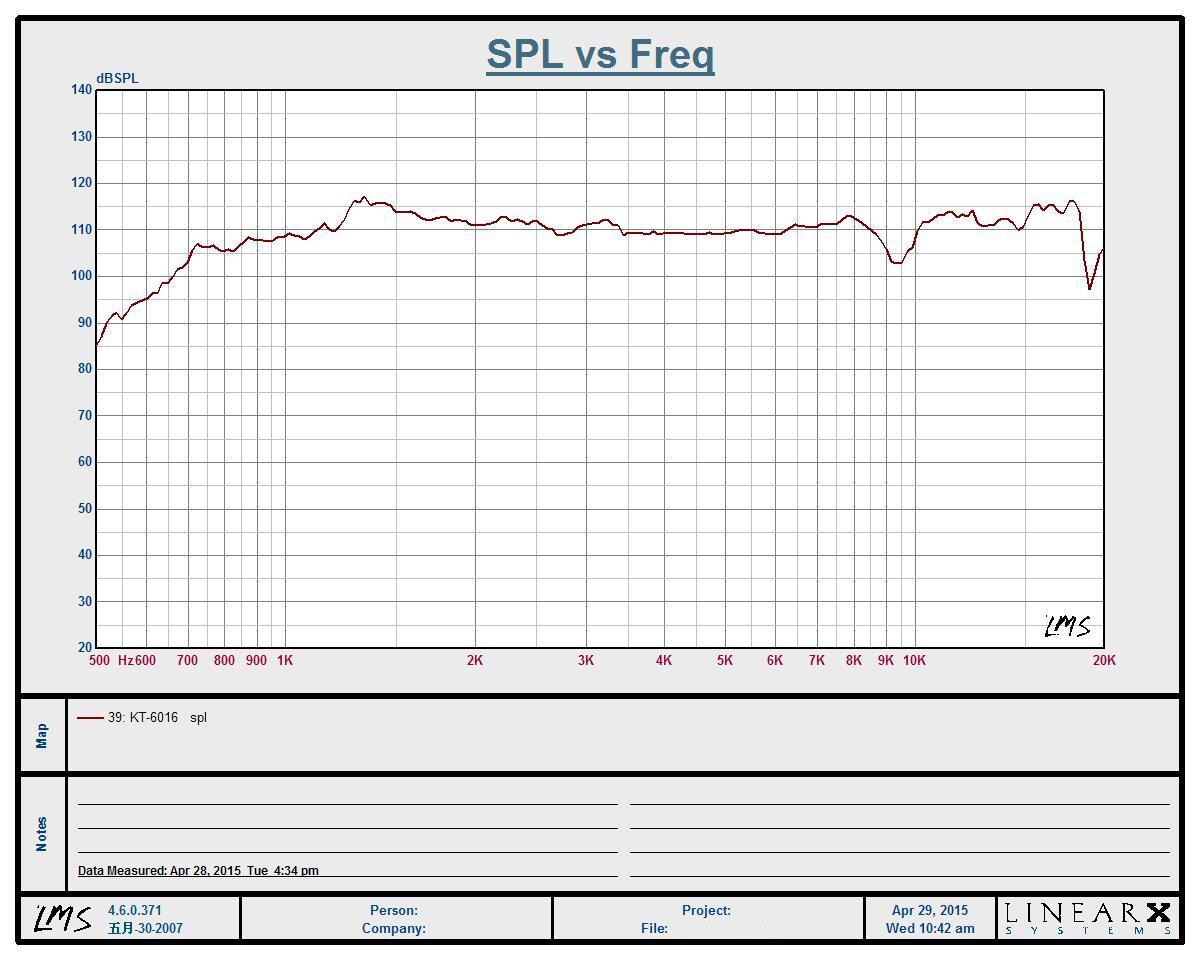

Sensitivity(1w/1m)                  106dB
Usable Frequency Range        1.5KHz - 18KHz
Recommended crossover        above 2kHz
Frequency Filtered at
18dB /Octave
Voice Coil Diameter                1.75"/44.4mm
Voice Coil DC Resistance        6.0　Ω
Flux Density                           1.6Tesla


Material of Construction

Coil Former                              Kapton
Voice Coil Material                   Aluminium
Diaphragm material                  Polyester
Magnet Material                      Ferrite


Mounting /Shipping Information

Overall Diameter                      4.13" /105mm
Depth                                     1.83" /46.5mm
Weight                                   1.5 kg
Shipping Weight                      1.6kg
Packing Carton Dimensions     11.5*11.5*6cm
Bolt Fixing Hole Dim and Qty   Screw Fit  4xM6 holes onΦ76.2
