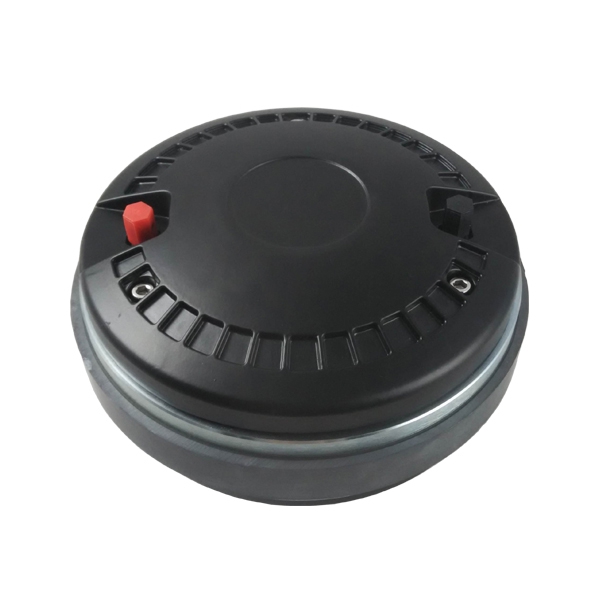

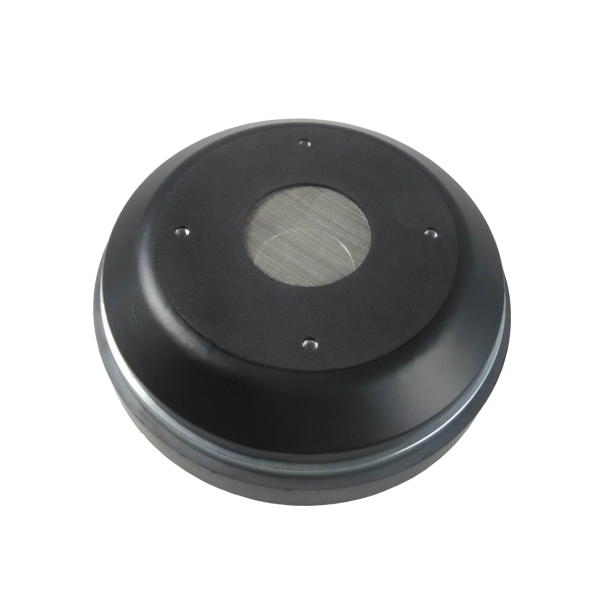

KT-6020

Electro Acoustic Specification

Sound Channel / Throat Size    2" /50.6mm

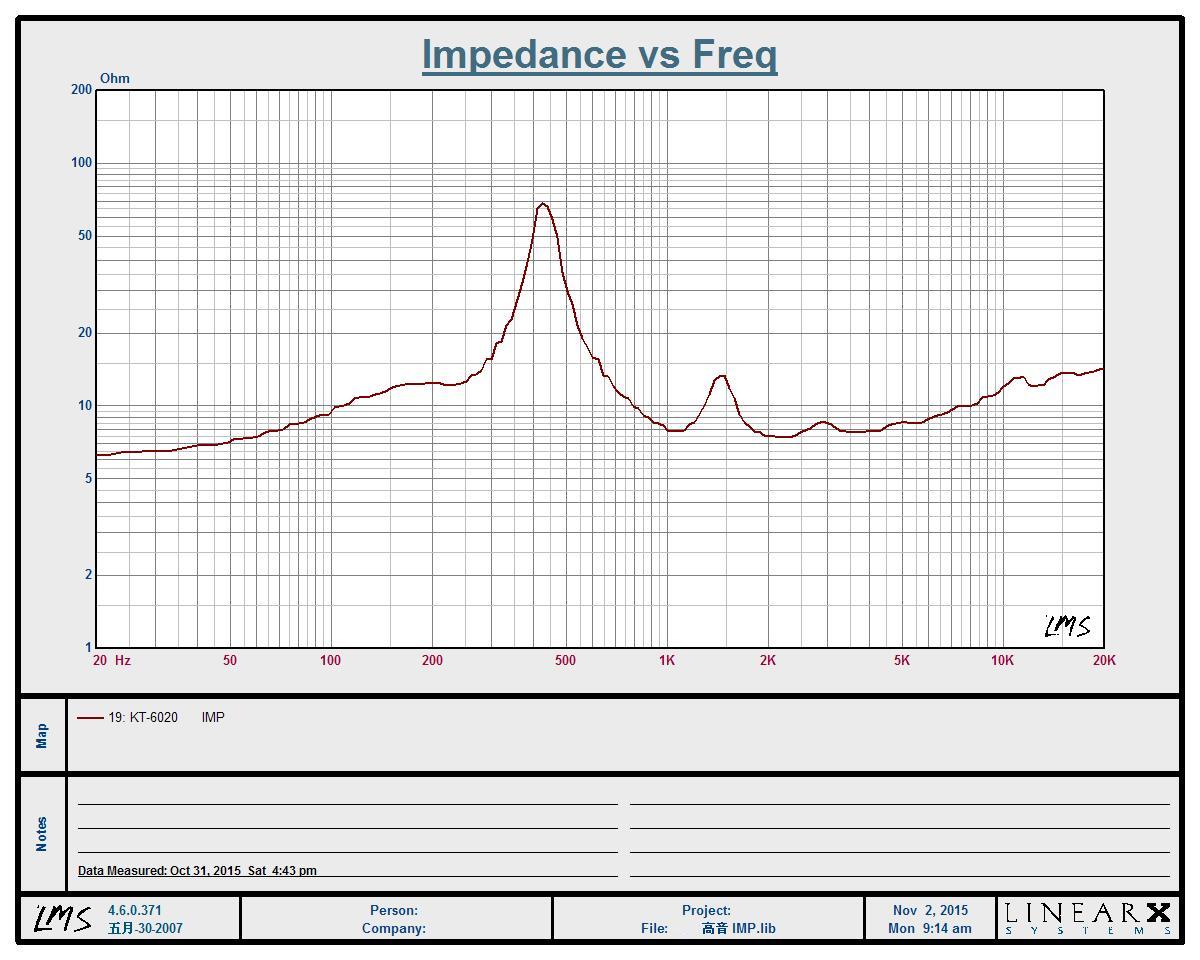

Nominal Impedance                8Ω
Power Handing                       80W A.E.S.

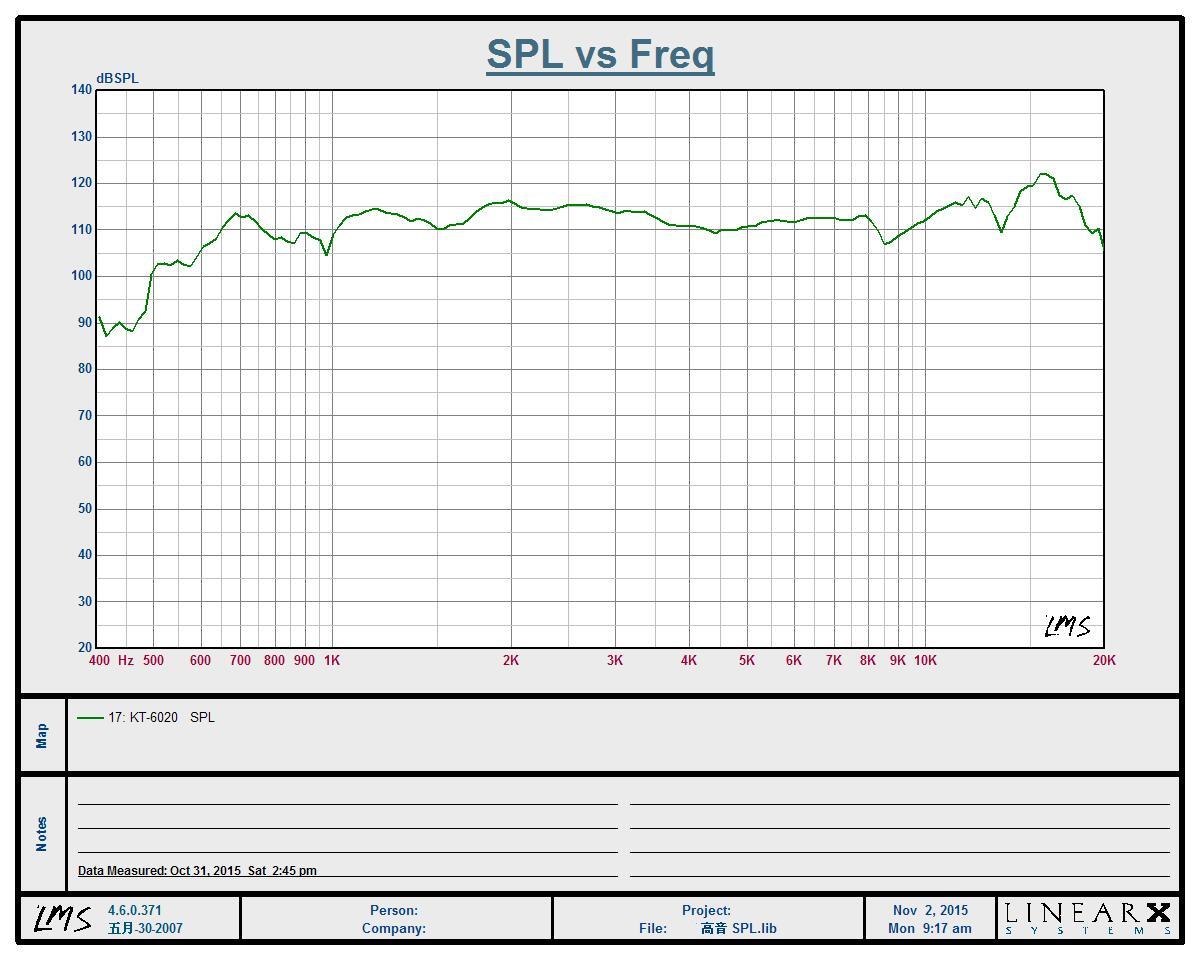

Sensitivity(1w/1m)                   108dB
Usable Frequency Range        1.0KHz - 18KHz
Recommended crossover        above 1.5kHz
Frequency Filtered at
18dB /Octave
Voice Coil Diameter                3"/74.5mm
Voice Coil DC Resistance        5.9 Ω
Flux Density                           1.8Tesla


Material of Construction

Coil Former                              Kapton
Voice Coil Material                   Aluminium
Diaphragm material                  Titanium
Magnet Material                       Ferrite


Mounting /Shipping Information

Overall Diameter                     7.17" /182mm
Depth                                     3.74" /95mm
Weight                                   6.35 kg
Shipping Weight                      6.55kg
Packing Carton Dimensions     19.5*19.5*10.5cm
Bolt Fixing Hole Dim and Qty   Screw Fit  4xM6 holes on Φ101.6
