KT-6021

Electro Acoustic Specification

Sound Channel / Throat Size    1" /25.4mm

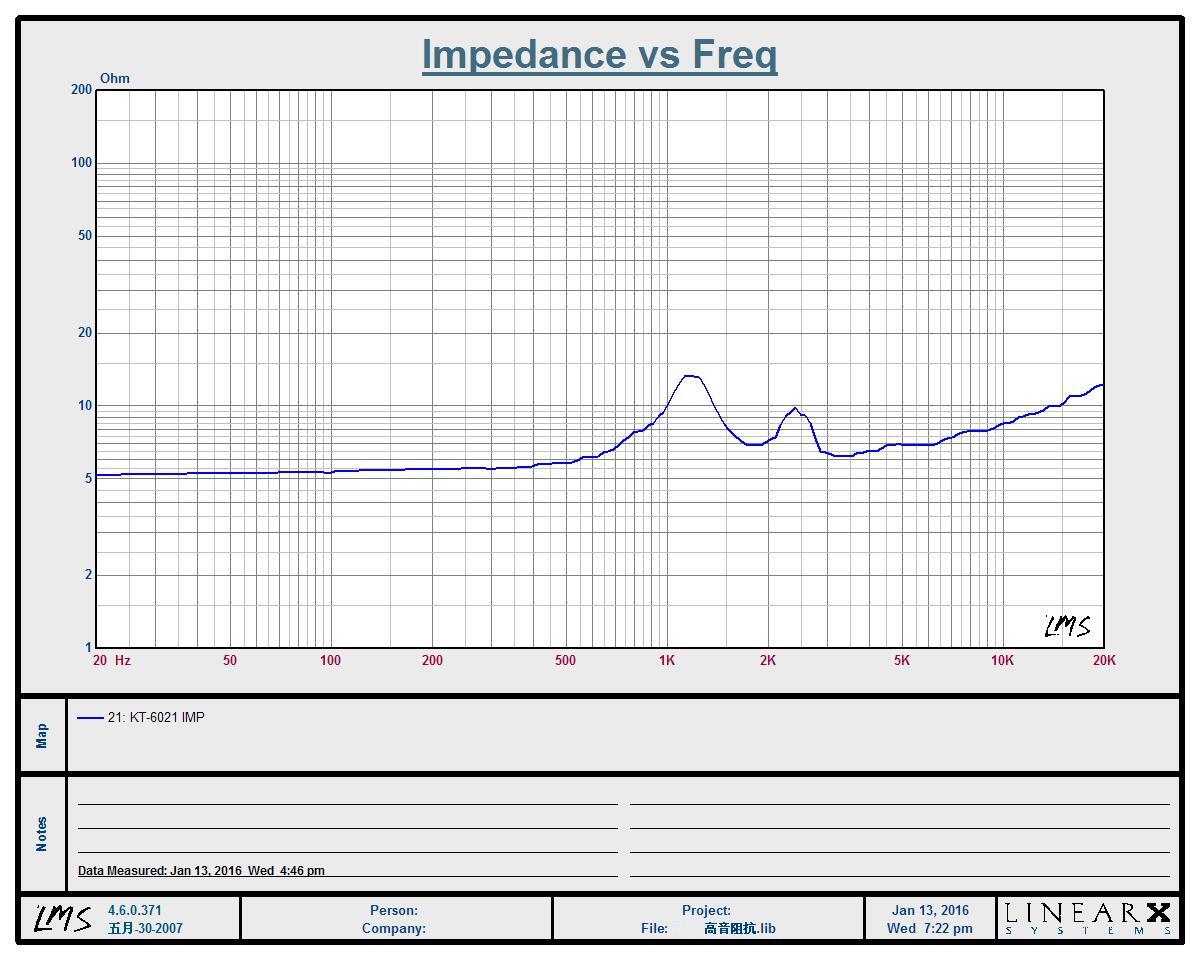

Nominal Impedance                8Ω
Power Handing                       40W A.E.S.

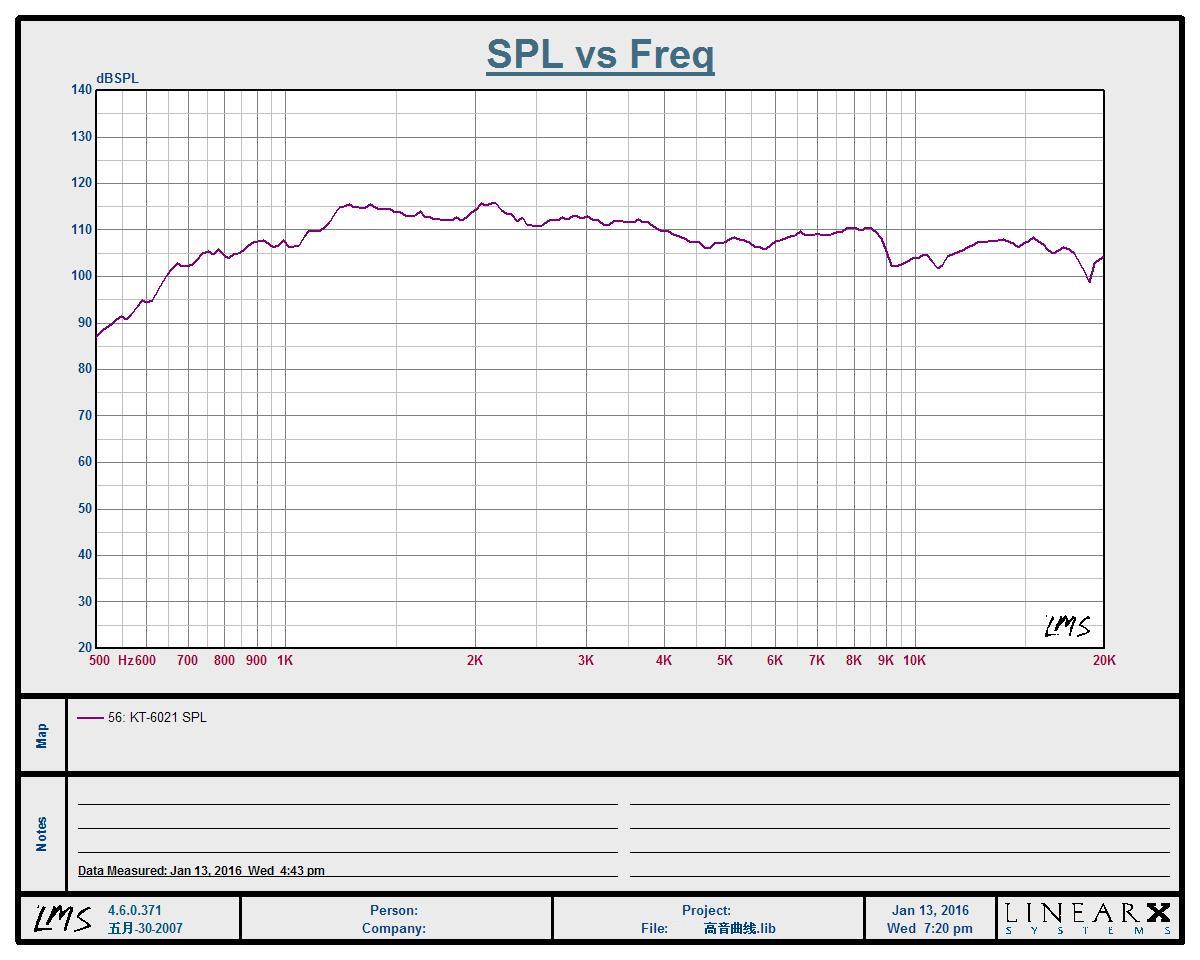

Sensitivity(1w/1m)                   106dB
Usable Frequency Range        1.3KHz - 18KHz
Recommended crossover        above 1.5kHz
Frequency Filtered at
18dB /Octave
Voice Coil Diameter                1.75"/44.4mm
Voice Coil DC Resistance        5.1 Ω
Flux Density                           1.6Tesla


Material of Construction

Coil Former                             Kapton
Voice Coil Material                   Aluminium
Diaphragm material                  Mylar
Magnet Material                       Ferrite


Mounting /Shipping Information

Overall Diameter                     3.98" /101mm
Depth                                     2.72" /69mm
Weight                                   1.65 kg
Shipping Weight                      1.95kg
Packing Carton Dimensions     11*11*8 cm
Bolt Fixing Hole Dim and Qty   Screw Fit  4xM6 holes onΦ76.2
