Nominal Chassis Diameter 10"

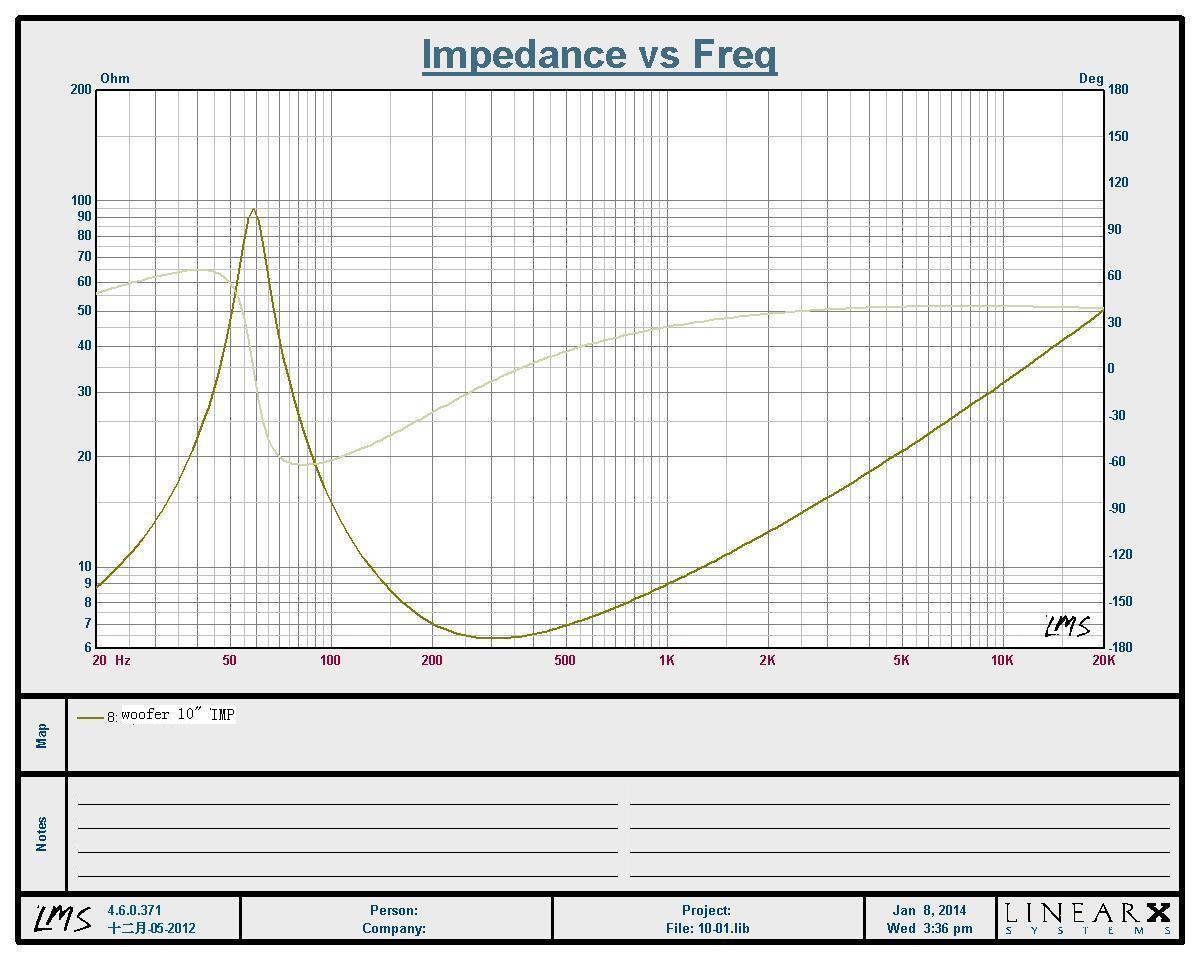

Nominal Impedance 8Ω
Power Handing 300W A.E.S.
Peak Power 1200W A.E.S.

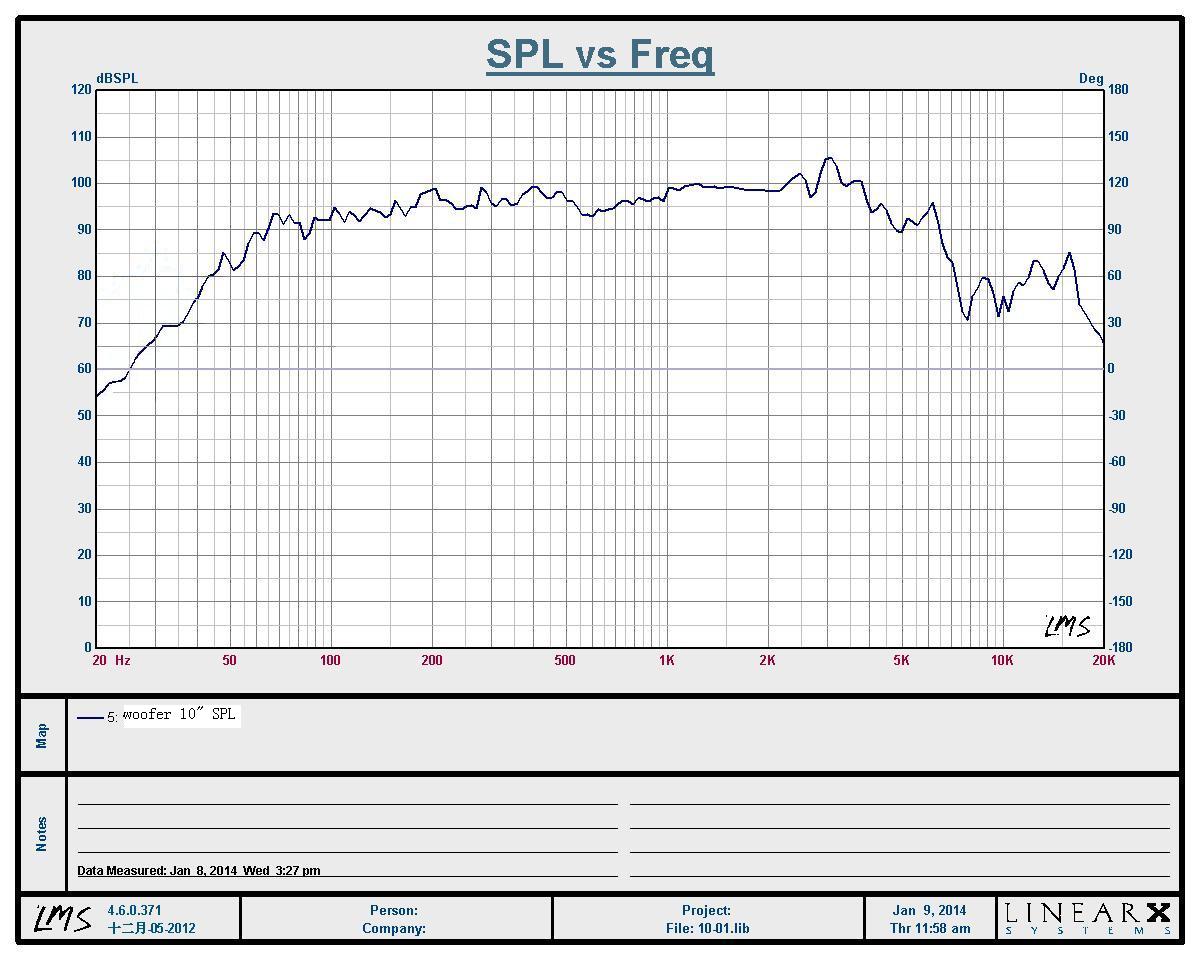

Sensitivity(1w/1m) 96dB
Usable Frequency Range 55Hz - 5KHz
Voice Coil Diameter 2.5"/63.5mm
Voice Coil DC Resistance 5.2 Ω Flux Density 1.0 Tesla
Material of Construction
Coil Former Glass Fiber Voice Coil Material CCAW Chassis Die Cast Aluminium Magnet Material Ferrite
Mounting /Shipping Information
Overall Diameter 10.2"/260 mm Depth 120 mm Weight 4.9 kg Shipping Weight 5.5 kg Packing Carton Dimensions 27.5*27.5*13.5cm Bolt Fixing Hole Dim and Qty 8*∮6.5mm on 246mm PCD
