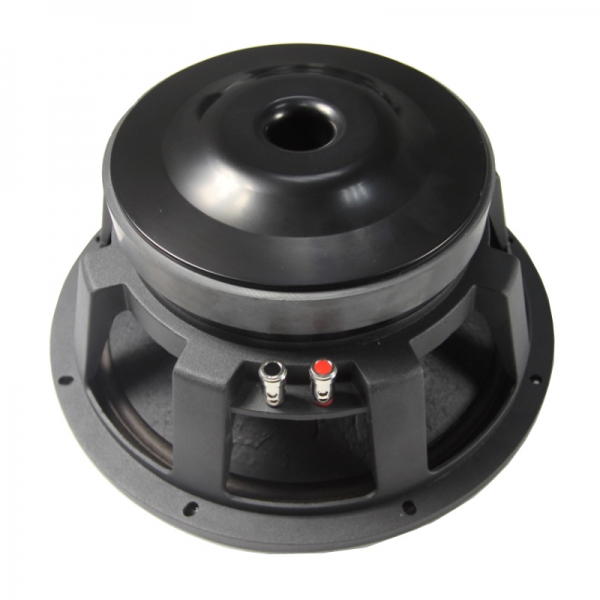

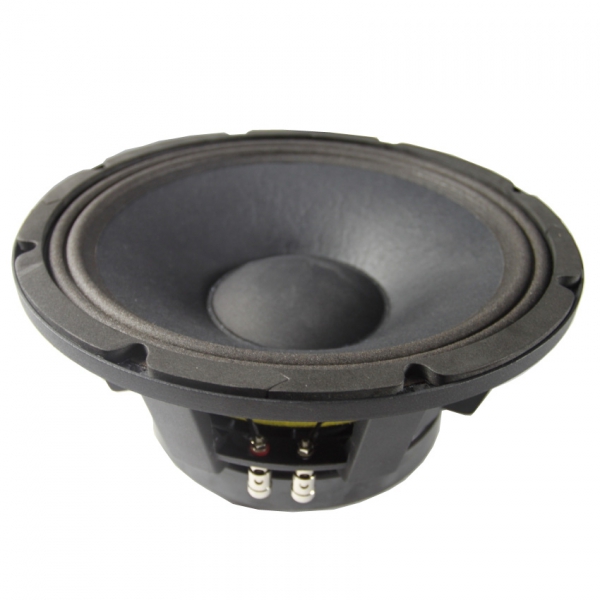

KW-12002

Electro Acoustic Specification

Nominal Chassis Diameter     12"

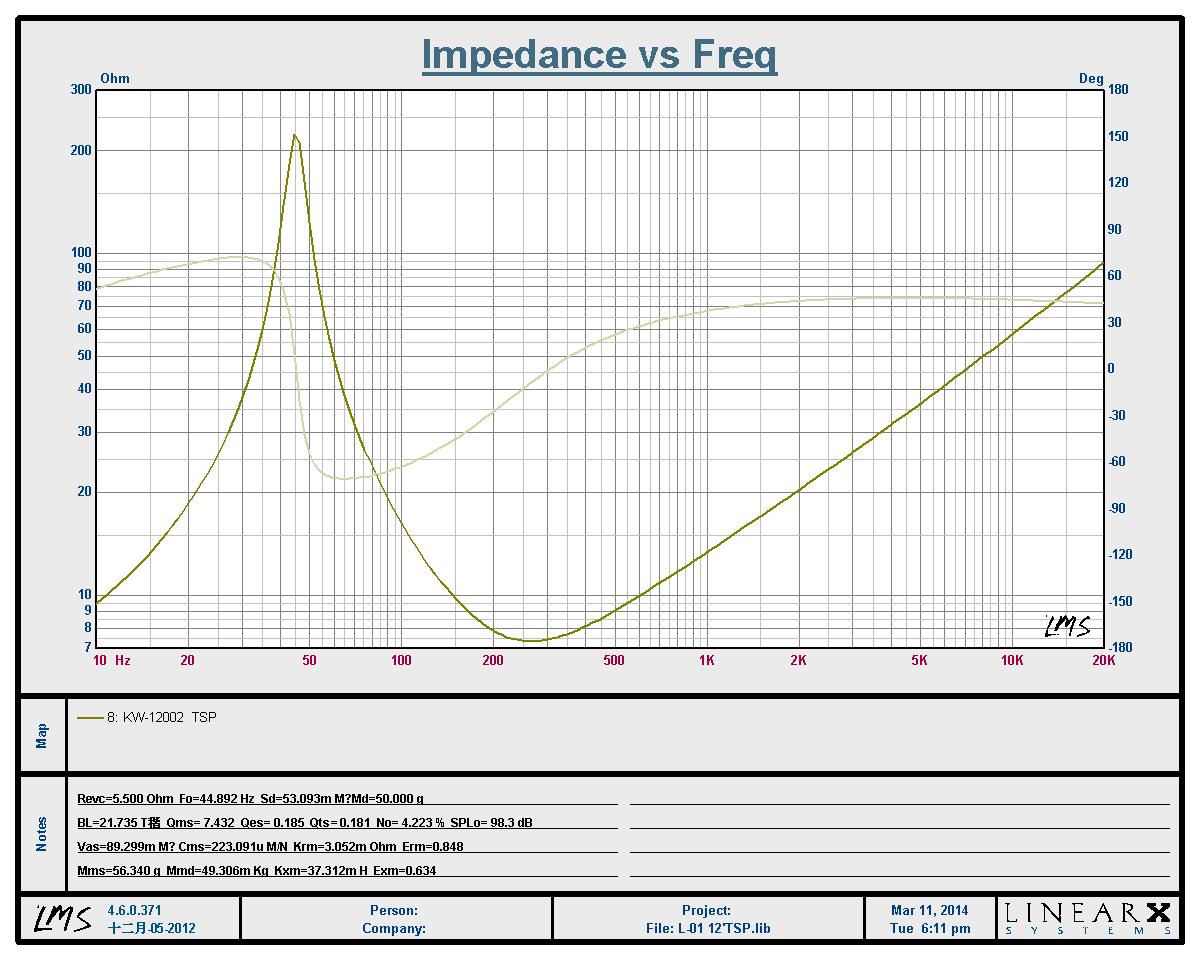

Nominal Impedance               8Ω
Power Handing                      300W A.E.S
Peak Power                          1200W A.E.S

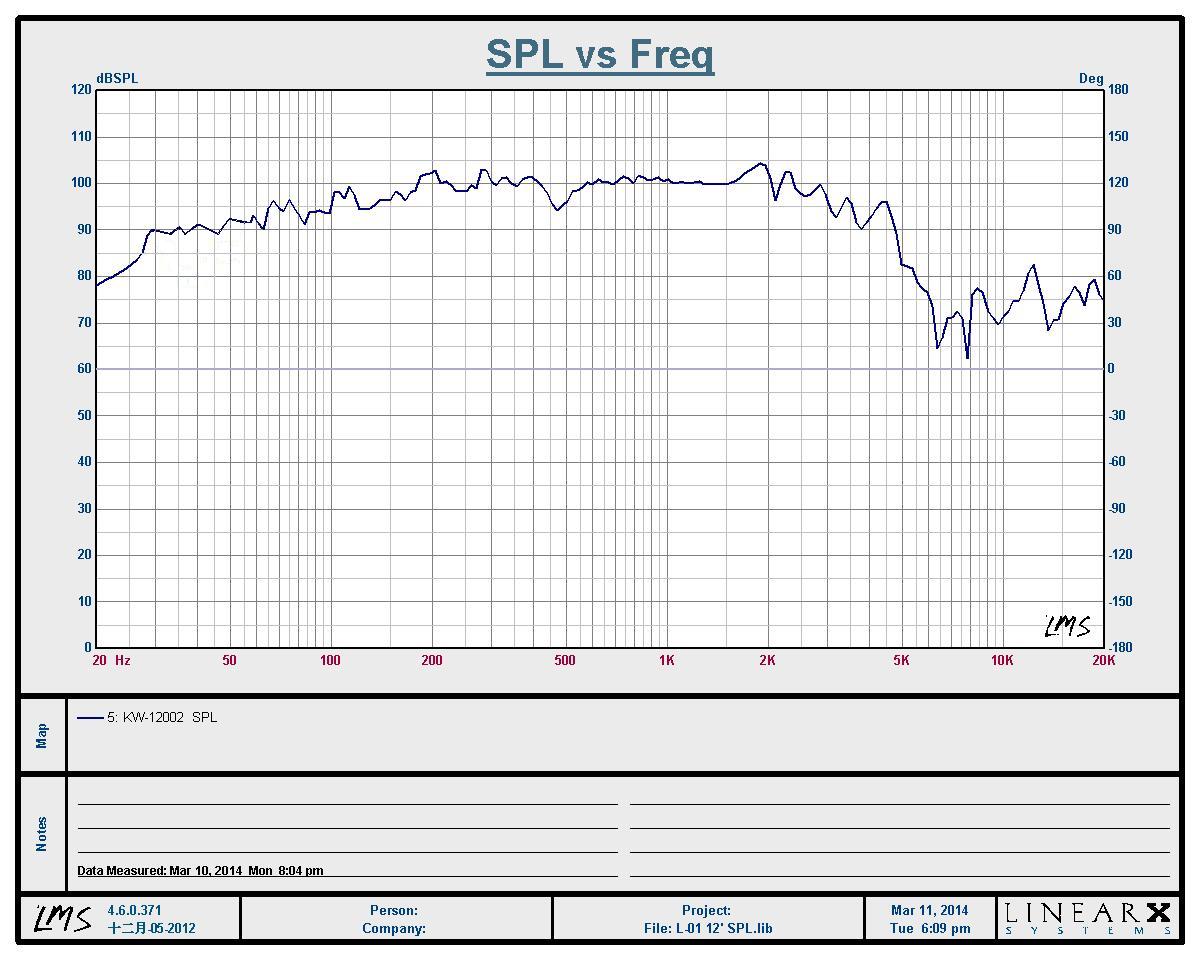

Sensitivity(1w/1m)                  98dB
Usable Frequency Range       45Hz - 4KHz
Voice Coil Diameter               3.0"/76.9mm
Voice Coil DC Resistance      5.5 Ω
Flux Density                         1.4 Tesla


Material of Construction

Coil Former                             Glass Fiber
Voice Coil Material                  Copper
Chassis                                  Die Cast Aluminium
Magnet Material                       Ferrite


Mounting /Shipping Information

Overall Diameter                       12.32"/313 mm
Depth                                      155 mm
Weight                                     9.1 kg
Shipping Weight                       10 kg
Packing Carton Dimensions       33* 33* 17.0cm
Bolt Fixing Hole Dim and Qty     8*∮6.5mm on 293mm PCD
