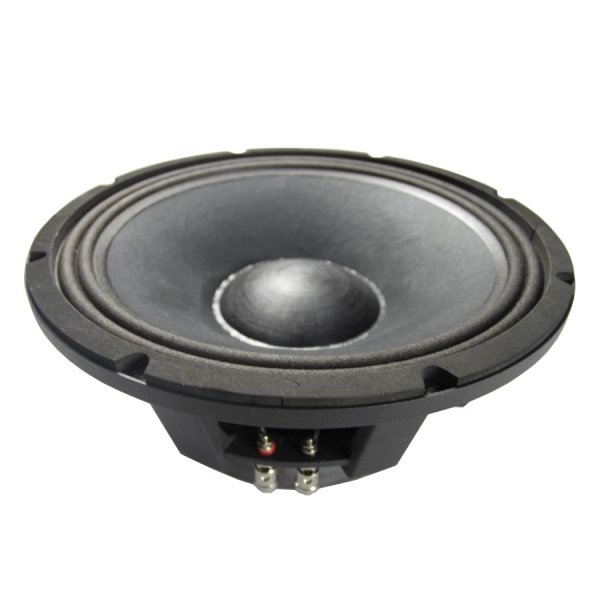

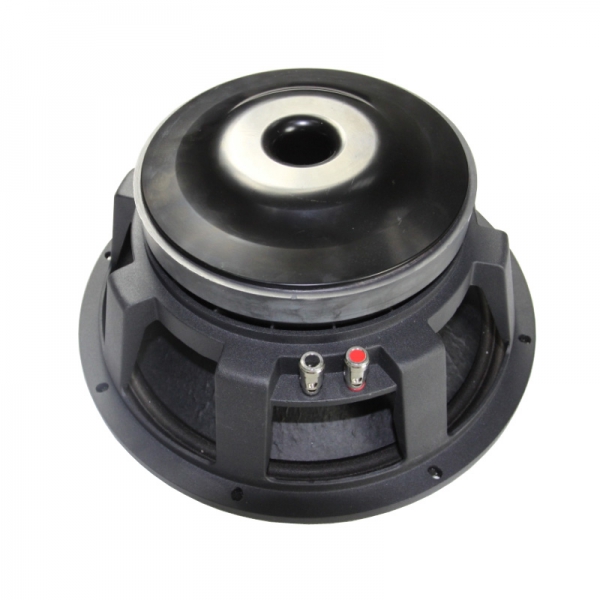

KW-12003

Electro Acoustic Specification

Nominal Chassis Diameter     12"

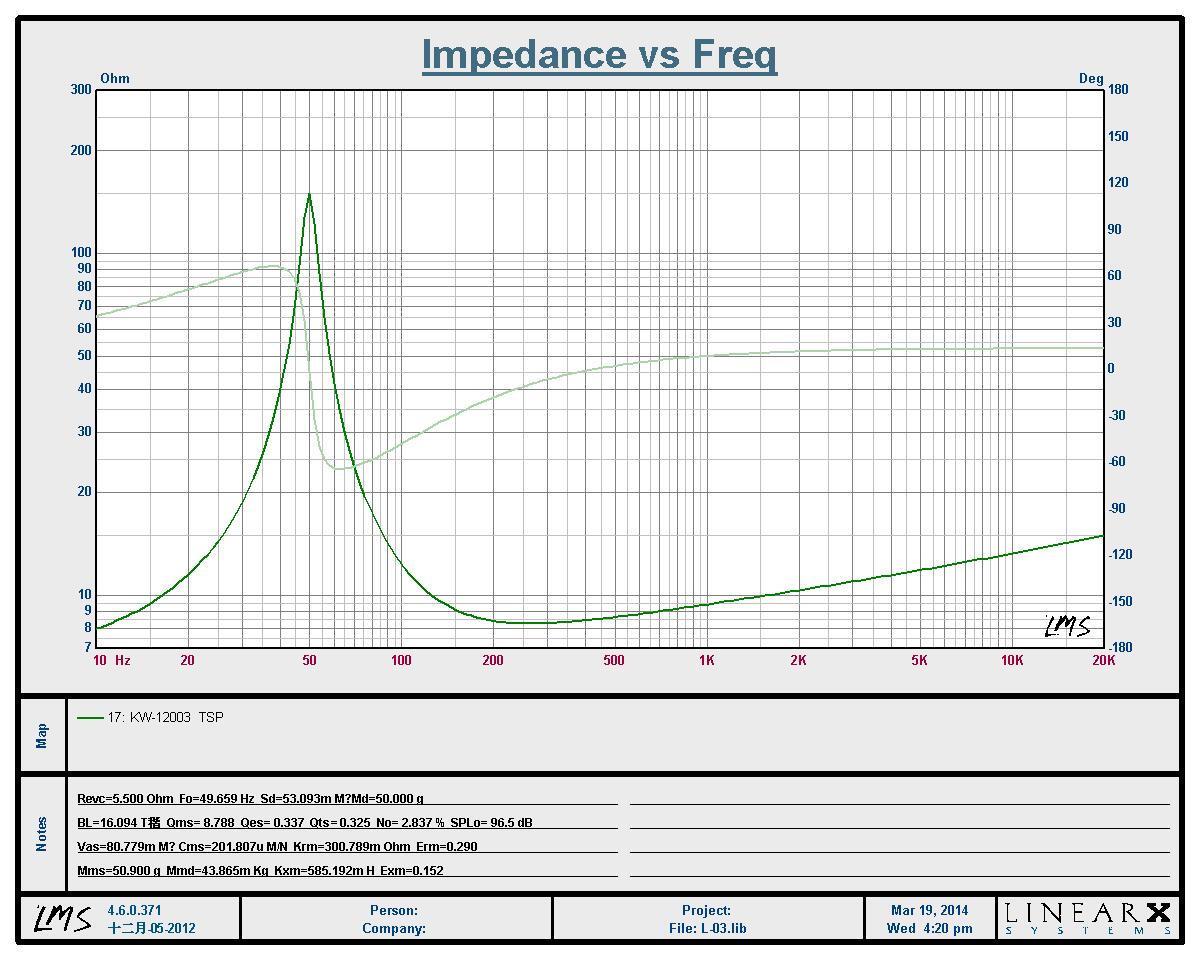

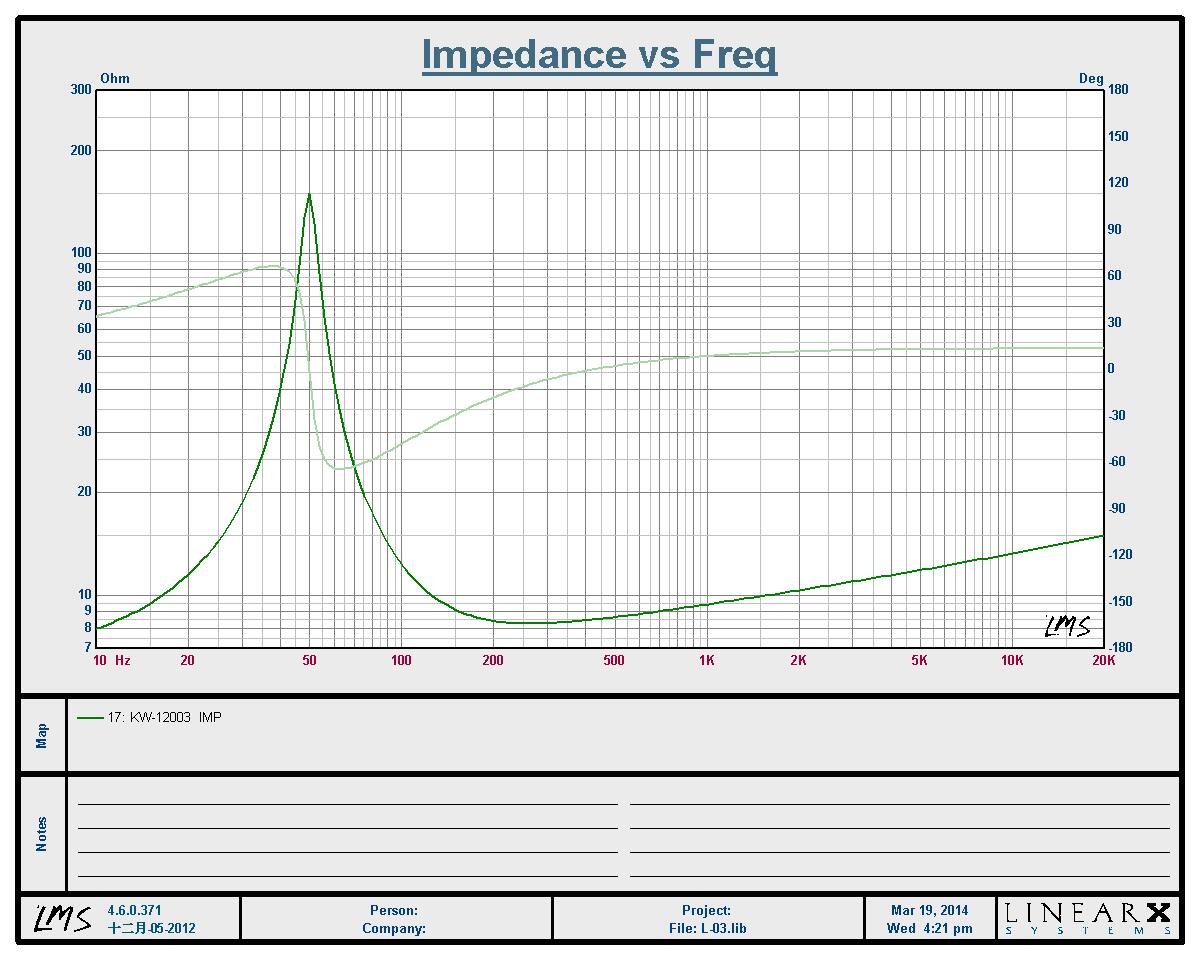

Nominal Impedance               8Ω
Power Handing                      300W A.E.S
Peak Power                          1200W A.E.S

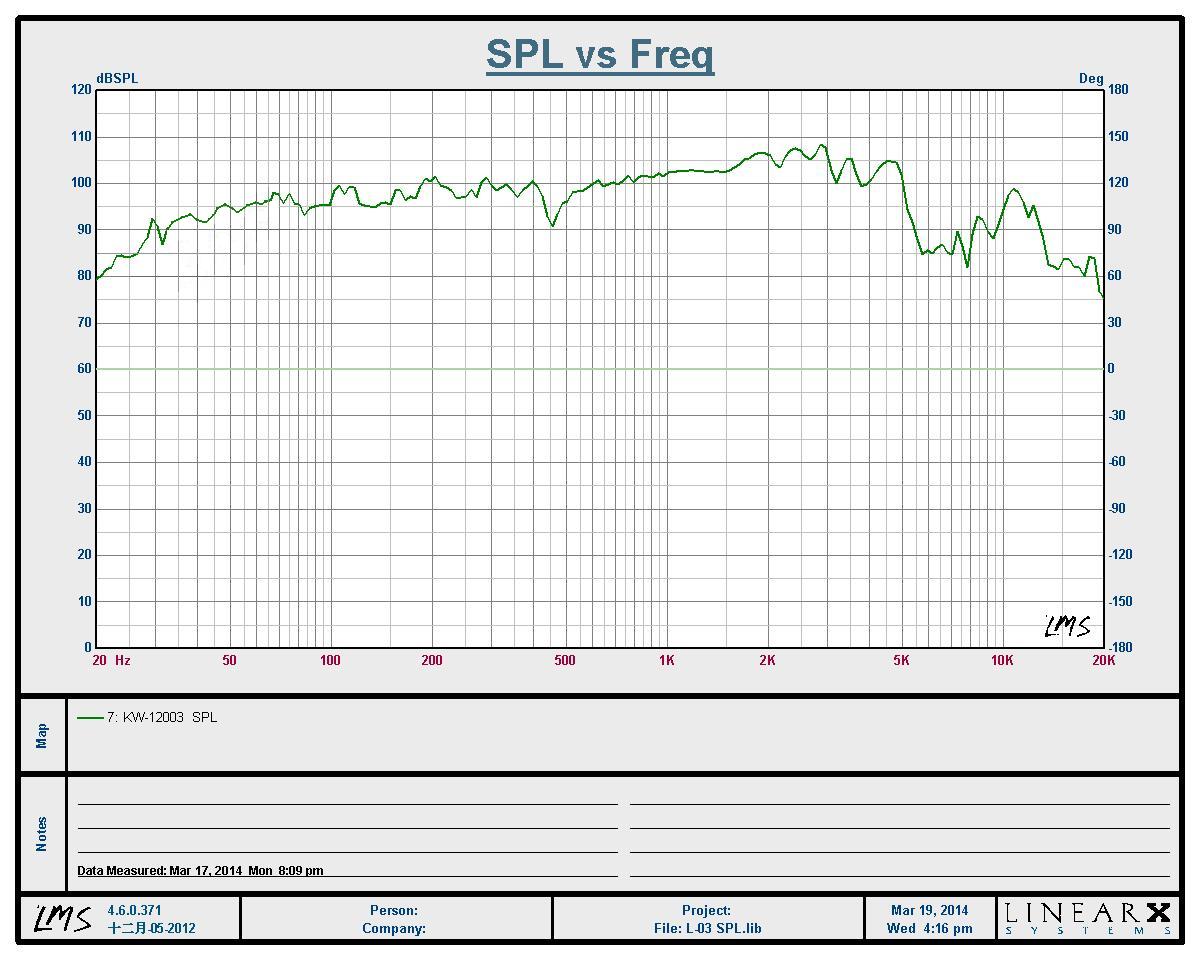

Sensitivity(1w/1m)                  96.5dB
Usable Frequency Range        50Hz - 5KHz
Voice Coil Diameter                3.0" / 76.9 mm
Voice Coil DC Resistance       5.5 Ω
Flux Density                           1.3 Tesla


Material of Construction

Coil Former                             Glass Fiber
Voice Coil Material                   CCAW
Chassis                                   Die Cast Aluminium
Magnet Material                        Ferrite


Mounting /Shipping Information

Overall Diameter                     12.32" /313 mm
Depth                                    150 mm
Weight                                   8.0 kg
Shipping Weight                      8.8 kg
Packing Carton Dimensions      33.5*33.5*19 cm
Bolt Fixing Hole Dim and Qty    8*∮6.5mm on 293mm PCD
