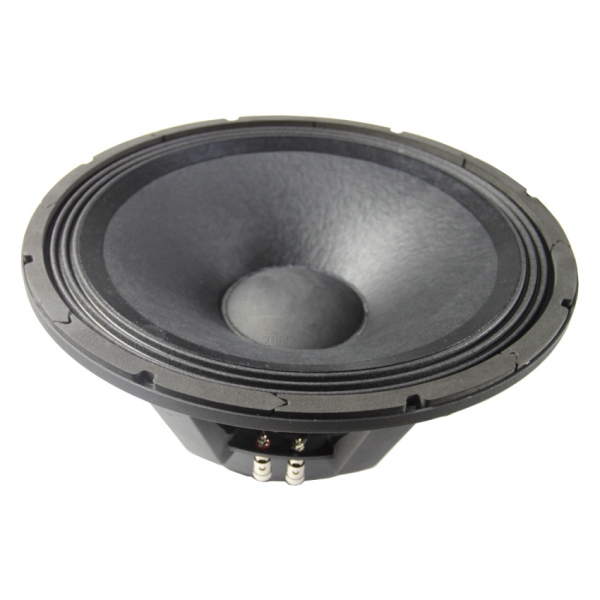

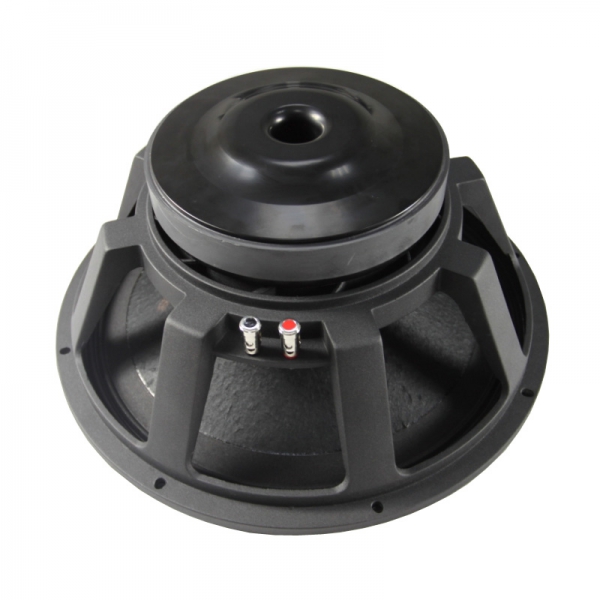

KW-15003

Electro Acoustic Specification

Nominal Chassis Diameter      15"
Nominal Impedance                8Ω
Power Handing                       600W A.E.S
Peak Power                           2400W A.E.S
Sensitivity(1w/1m)                  98.5dB
Usable Frequency Range        40Hz - 3.5KHz
Voice Coil Diameter                3.0"/76.9mm
Voice Coil DC Resistance       5.5 Ω
Flux Density                          1.4 Tesla


Material of Construction

Coil Former                              Glass Fiber
Voice Coil Material                    Copper
Chassis                                    Die Cast Aluminium
Magnet Material                         Ferrite


Mounting /Shipping Information

Overall Diameter                     15.28"/388 mm
Depth                                     182 mm
Weight                                    9.8 kg
Shipping Weight                       11 kg
Packing Carton Dimensions       40.5*40.5*20.0cm
Bolt Fixing Hole Dim and Qty     8*∮6.5mm on 371mm PCD
