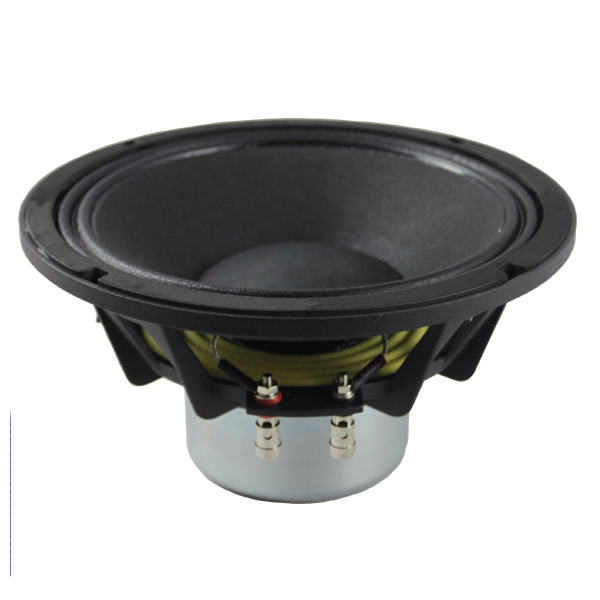

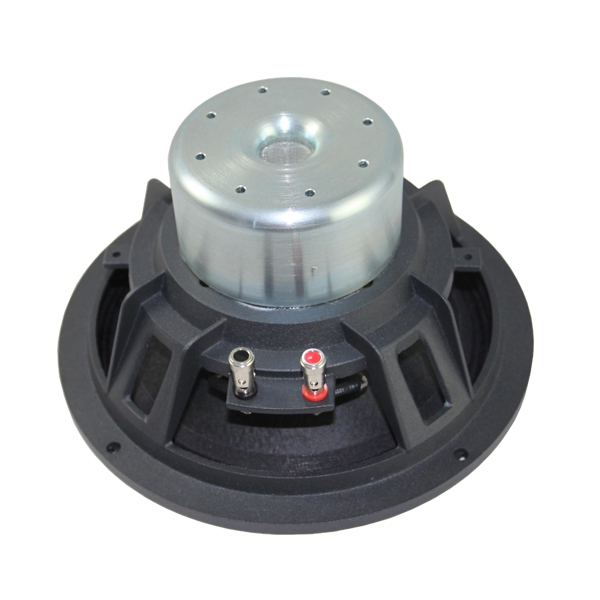

KW-8002N

Electro Acoustic Specification

Nominal Chassis Diameter     8"
Nominal Impedance                8Ω
Power Handing                       250W EIA 426A
Peak Power                            1000W EIA 426A
Sensitivity(1w/1m)                   95dB
Usable Frequency Range       80Hz - 4KHz
Voice Coil Diameter                2.5"/63.5 mm
Voice Coil DC Resistance       5.3 Ω
Flux Density                            1.3 Tesla


Material of Construction

Coil Former                              Glass Fiber
Voice Coil Material                   Copper
Chassis                                    Die Cast Aluminium
Magnet Material                       Neodymium


Mounting /Shipping Information

Overall Diameter                     8.27"/210 mm
Depth                                      112 mm
Weight                                     2.5 kg
Shipping Weight                      3.1 kg
Packing Carton Dimensions    22*22*12.5 cm
Bolt Fixing Hole Dim and Qty   4*∮5.5mm on 197mm PCD
